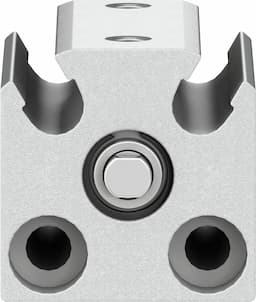

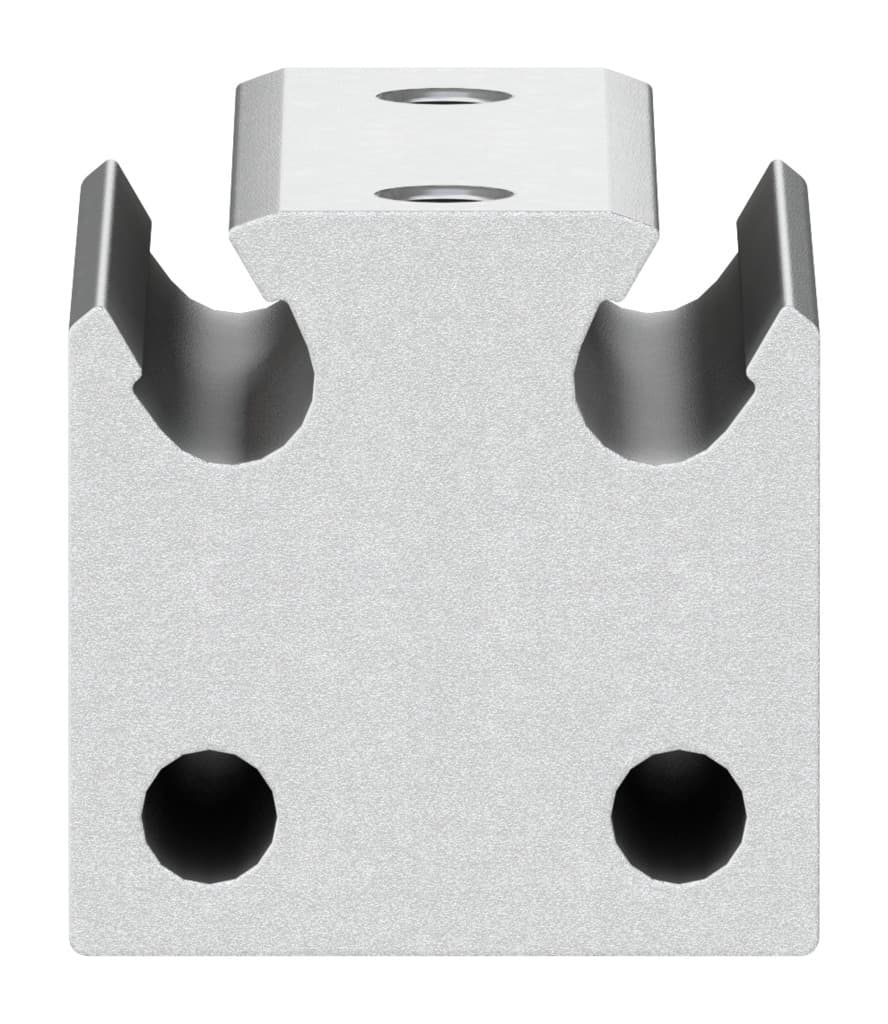

advc-6-5-p-a
Product ID:9026
Updated: 2026/4/3
Key Features
- 1Achieve precise 5 mm stroke control with a 6 mm piston. 2、Reduce component wear using integrated elastic cushioning rings. 3、Enhance automation efficiency with double-acting operation. 4、Ensure reliable performance across -20°C to 80°C. 5、Enable accurate position detection for proximity switches.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 5mm | Piston diameter | 6 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Structural design | Piston Piston rod |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Operating pressure | 21.75psi 116psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Theoretical force at 6 bar, retracting | 13N | Theoretical force at 6 bar, advancing | 17N |
| Moving mass | 1.7g | Product weight | 14g |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M3 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
| Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
| Piston rod material | High-alloy steel | Manufacturer ID | 526901 |
Specifications may be subject to change without notice
