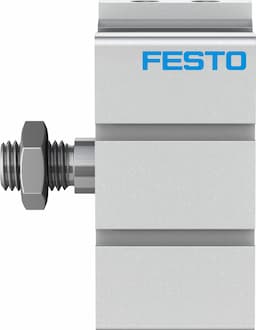

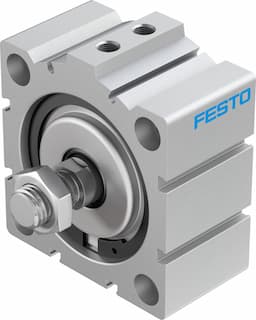

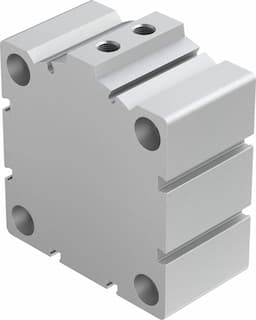

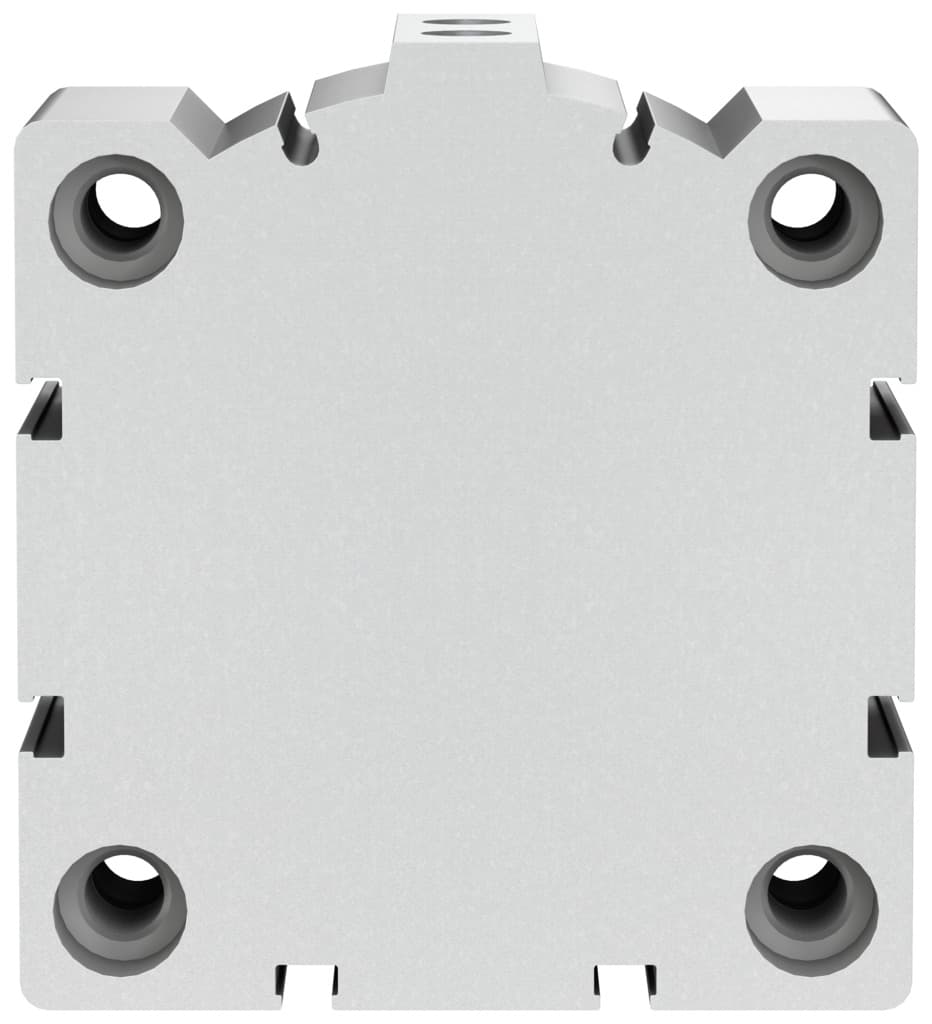

advc-80-10-a-p
Product ID:6458
Updated: 2026/7/7
Key Features
- 1Achieve precise 10 mm control in tight spaces.
- 2Construct with durable wrought aluminum and high-alloy steel.
- 3Integrate elastic cushioning rings for smooth operation and reduced wear.
- 4Execute both advancing and retracting strokes for versatile applications.
- 5Comply with ISO 6431 and VDMA 24562 standards for guaranteed compatibility.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 80 mm |
| Based on norm | ISO 6431 Hole pattern VDMA 24562 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Piston Piston rod | Position sensing | None |
| Symbol | 00991227 | Operating pressure | 14.5psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 2827N |
| Theoretical force at 6 bar, advancing | 3016N | Moving mass | 327g |
| Moving mass at 0?mm stroke | 315g | Additional moving mass per 10?mm stroke | 24g |
| Product weight | 1052g | Basic weight with 0?mm stroke | 994g |
| Additional weight per 10?mm stroke | 112g | Type of mounting | Optionally: With through-hole With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy Anodized | Seals material | NBR TPE-U(PU) |
| Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
| Manufacturer ID | 188320 |
Specifications may be subject to change without notice
