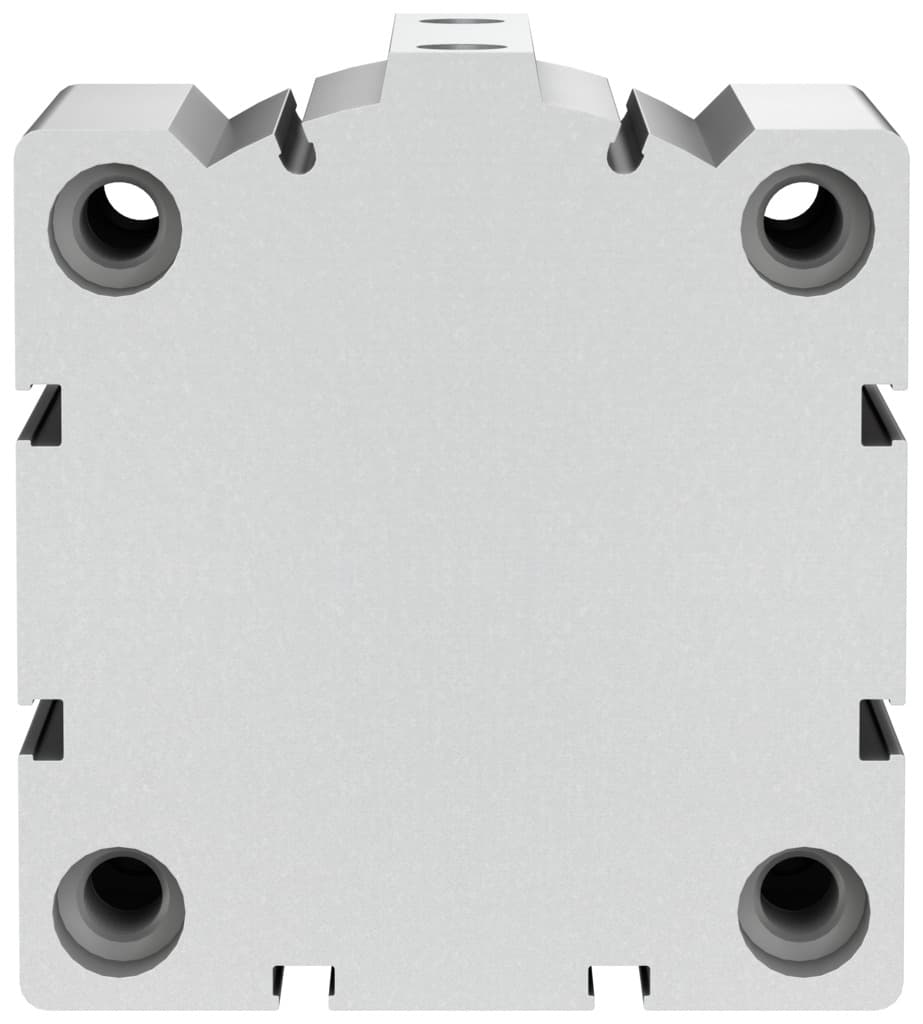

advc-80-20-a-p-a
Product ID:6456
Updated: 2026/4/3
Key Features
- 1Maximize precision with a 20mm stroke and 80mm piston diameter. 2、Enhance versatility using double-acting operation for push/pull forces. 3、Reduce wear and ensure smooth motion via elastic cushioning rings. 4、Ensure reliable performance with filtered compressed air compatibility up to 10 bar. 5、Achieve durability in diverse settings with standard low corrosion resistance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 20mm | Piston diameter | 80 mm |
| Based on norm | ISO 6431 Hole pattern VDMA 24562 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991217 | Operating pressure | 14.5psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 2827N |
| Theoretical force at 6 bar, advancing | 3016N | Moving mass | 301g |
| Moving mass at 0?mm stroke | 265g | Additional moving mass per 10?mm stroke | 24g |
| Product weight | 1297g | Basic weight with 0?mm stroke | 1119g |
| Additional weight per 10?mm stroke | 114g | Type of mounting | Optionally: With through-hole With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
| Manufacturer ID | 188318 |
Specifications may be subject to change without notice
