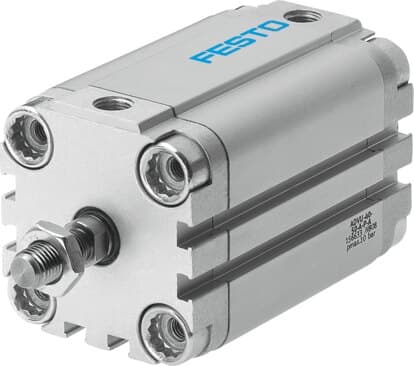

ADVU-100-50-A-P-A
Product ID:510889
Updated: 2026/6/1
Key Features
- 1Operating mode: Double acting
- 2Piston diameter: 100 mm
- 3Theoretical force at 6 bar, forward stroke: 4712 N
- 4Stroke: 50 mm
- 5Cushioning: Elastic cushioning rings/pads at both ends
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Material of cylinder barrel | Wrought aluminium alloy | Material of piston rod | High-alloy steel |
| Material of dynamic seals | NBR / TPE-U(PU) | Material of cover | Wrought aluminium alloy |
| Material of eye screw | Galvanized steel | Pneumatic connection | G1/4 |
| Mounting type | With through holes / With accessories | Additional weight per 10 mm stroke | 177 g |
| Basic weight at 0 mm stroke | 2797 g | Additional moving mass per 10 mm stroke | 38 g |
| Moving mass at 0 mm stroke | 614 g | Theoretical force at 6 bar, forward stroke | 4712 N |
| Theoretical force at 6 bar, return stroke | 4418 N | Impact energy at end positions | 1 J |
| Ambient temperature | -20 / 80 °C | Paint-wetting impairment substance (PWIS) conformance | VDMA24364-B1/B2-L |
| Corrosion resistance class CRC | 2 - Moderate corrosion resistance | Note on operating and pilot medium | Can be operated with lubricated medium (subsequently must always be operated with lubricated medium) |
| Operating medium | Compressed air conforming to ISO 8573-1:2010 [7:4:4] | Operating pressure | 8.7 / 145 psi |
| Variant | Single-ended piston rod | Symbol | 00991217 |
| Position detection | Via proximity switch | Design feature | Cylinder bore / Piston rod |
| Piston rod end | External thread | Operating mode | Double acting |
| Mounting position | Any | Cushioning | Elastic cushioning rings/pads at both ends |
| Piston rod thread | M20x1.5 | Piston diameter | 100 mm |
| Stroke | 50 mm |
Specifications may be subject to change without notice
