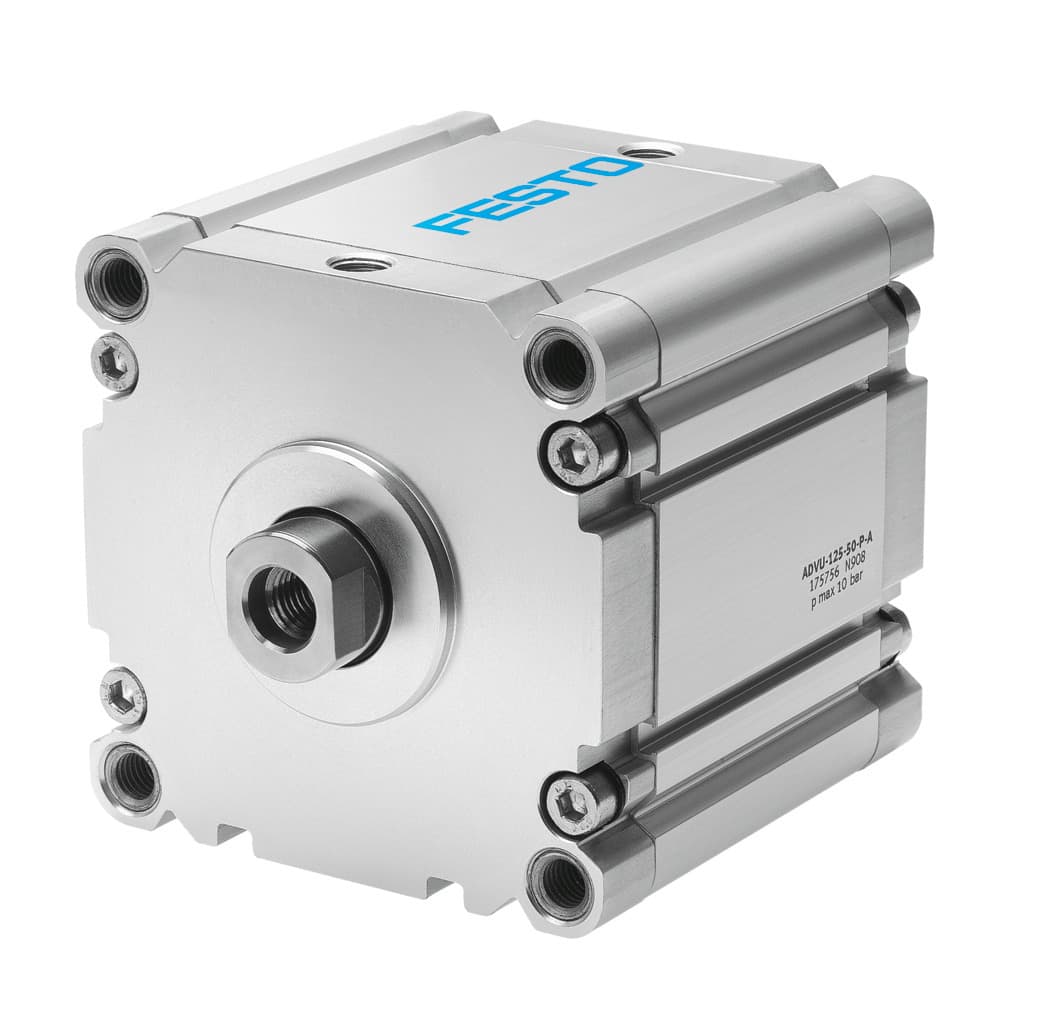

advu-125- -p-a-r3
Product ID:5432
Updated: 2026/4/4
Key Features
- 1Achieve strokes from 1 to 400 mm for versatile application fit. 2、Ensure smooth operation with 125 mm piston and elastic cushioning rings. 3、Enable precise bidirectional control via double-acting operation. 4、Withstand harsh conditions with high CRC 3 corrosion resistance. 5、Monitor position accurately using optional proximity switch sensing.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 400mm | Piston diameter | 125 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Piston rod end | Internal thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991217 | Variants | High corrosion protection |
| Operating pressure | 7.25psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 3 - High corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 3.3J | Theoretical force at 6 bar, retracting | 6881N |
| Theoretical force at 6 bar, advancing | 7363N | Moving mass at 0?mm stroke | 1317g |
| Additional moving mass per 10?mm stroke | 63g | Basic weight with 0?mm stroke | 3426g |
| Additional weight per 10?mm stroke | 168g | Type of mounting | Optionally: With through-hole With accessories |
| Pneumatic connection | G1/4 | Flange screws material | High-alloy stainless steel |
| Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | Wrought aluminum alloy |
| Manufacturer ID | 176850 |
Specifications may be subject to change without notice
