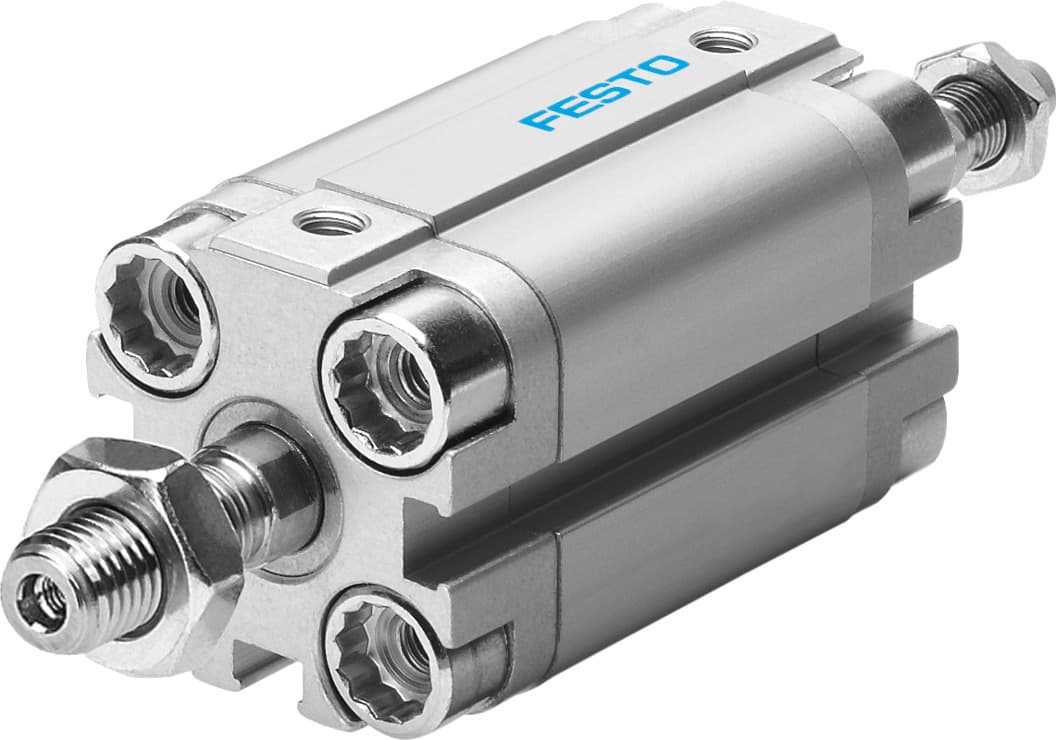

advu-12- -a-p-a-s20
Product ID:2913
Updated: 2026/7/7
Key Features
- 1Engineer high-performance motion with the ADVU-12- -A-P-A-S20.
- 2Reduce noise using adjustable cushioning at both ends.
- 3Enable versatile linear motion via double-acting operation.
- 4Configure various stroke lengths for compact installations.
- 5Facilitate precise detection with a sensor-ready piston rod.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 200mm | Piston diameter | 12 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Piston rod end | External thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991218 | Variants | Through, hollow piston rod |
| Operating pressure | 21.75psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.07J | Theoretical force at 6 bar, retracting | 51N |
| Theoretical force at 6 bar, advancing | 51N | Type of mounting | Optionally: With through-hole With accessories |
| Pneumatic connection | M5 | Flange screws material | High-alloy stainless steel |
| Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | Wrought aluminum alloy |
| Manufacturer ID | 156060 |
Specifications may be subject to change without notice
