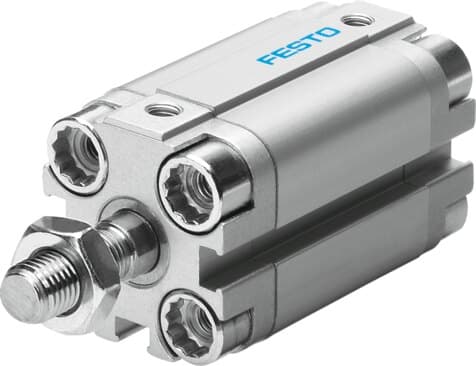

ADVU-16-25-A-P-A
Product ID:510817
Updated: 2026/6/1
Key Features
- 1Operating mode: Double acting
- 2Piston diameter: 16 mm
- 3Theoretical force at 6 bar, forward stroke: 121 N
- 4Stroke: 25 mm
- 5Cushioning: Elastic cushioning rings/plates at both ends
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Material of cylinder barrel | Wrought aluminium alloy | Material of piston rod | High-alloy stainless steel |
| Material of dynamic seals | NBR / TPE-U(PU) | Material of end cap | Wrought aluminium alloy |
| Material of eye screw | High-alloy stainless steel | Pneumatic connection | M5 |
| Mounting type | With through-holes / With accessories | Additional weight per 10 m stroke | 15 g |
| Basic weight at 0 mm stroke | 89 g | Additional moving mass per 10 mm stroke | 4 g |
| Moving mass at 0 mm stroke | 12 g | Theoretical force at 6 bar, forward stroke | 121 N |
| Theoretical force at 6 bar, return stroke | 90 N | Impact energy at end positions | 0.1 J |
| Ambient temperature | -20 / 80 °C | Paint-wetting impairment substance (PWIS) conformity | VDMA24364-B1/B2-L |
| Corrosion resistance class CRC | 2 - Moderate corrosion resistance | Operating and pilot medium notes | Can be operated with lubricated medium (subsequently must always be operated with lubricated medium) |
| Operating medium | Compressed air conforming to ISO 8573-1:2010 [7:4:4] | Operating pressure | 17.4 / 145 psi |
| Variant | Single-ended piston rod | Symbol | 00991217 |
| Position detection | Via proximity switch | Design feature | Cylinder barrel / Piston rod |
| Piston rod end | External thread | Operating mode | Double acting |
| Mounting position | Optional | Cushioning | Elastic cushioning rings/plates at both ends |
| Piston rod thread | M8 | Piston diameter | 16 mm |
| Stroke | 25 mm |
Specifications may be subject to change without notice
