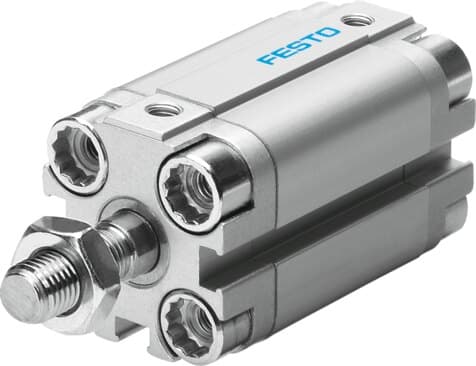

ADVU-25-15-A-P-A
Product ID:510830
Updated: 2026/6/1
Key Features
- 1Operating mode: Double acting
- 2Piston diameter: 25 mm
- 3Theoretical force at 6 bar, forward stroke: 295 N
- 4Stroke: 15 mm
- 5Cushioning: Elastic cushioning rings/pads at both ends
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cylinder barrel material | Wrought aluminium alloy | Piston rod material | High-alloy stainless steel |
| Dynamic seal material | NBR / TPE-U(PU) | Cover material | Wrought aluminium alloy |
| Eye screw material | Galvanized steel | Pneumatic connection | M5 |
| Mounting type | With through holes / With accessories | Additional weight for every 10 m stroke | 28 g |
| Basic weight for 0 mm stroke | 180 g | Additional moving mass for every 10 mm stroke | 6 g |
| Moving mass for 0 mm stroke | 26 g | Theoretical force at 6 bar, forward stroke | 295 N |
| Theoretical force at 6 bar, return stroke | 247 N | Impact energy at end positions | 0.1 J |
| Ambient temperature | -20 / 80 °C | Paint-wetting defect substance (PWIS) conformity | VDMA24364-B1/B2-L |
| Corrosion resistance class CRC | 2 - Moderate corrosion resistance | Note on operating and pilot medium | Can be operated with lubricated medium (subsequently must always be operated with lubricated medium) |
| Operating medium | Compressed air conforming to ISO 8573-1:2010 [7:4:4] | Operating pressure | 14.5 / 145 psi |
| Variant | Single-ended piston rod | Symbol | 00991217 |
| Position detection | Via proximity switch | Design feature | Cylinder bore / Piston rod |
| Piston rod end | External thread | Operating mode | Double acting |
| Mounting position | Optional | Cushioning | Elastic cushioning rings/pads at both ends |
| Piston rod thread | M10x1.25 | Piston diameter | 25 mm |
| Stroke | 15 mm |
