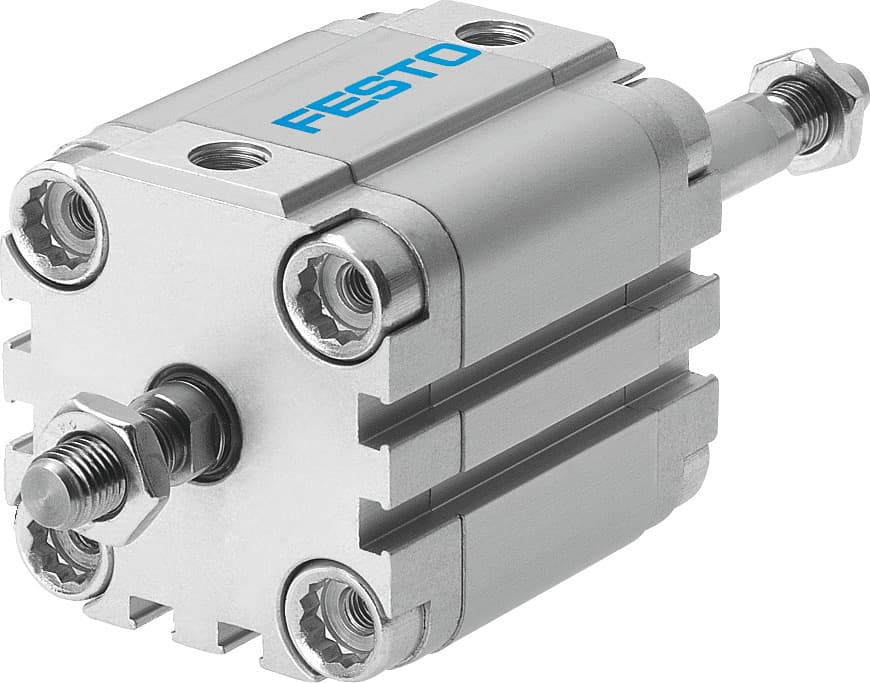

advu-63- -a-p-a-s2
Product ID:2910
Updated: 2026/4/3
Key Features
- 1Deliver precision with a 63mm piston diameter and 20mm stroke. 2、Operate in double-acting mode for versatile extension and retraction. 3、Reduce impact and wear using elastic cushioning rings at both ends. 4、Integrate flexibly with optional mounting positions for various setups. 5、Ensure reliable performance with compressed air to ISO 8573-1:2010.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 300mm | Piston diameter | 63 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Piston rod end | External thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991219 | Variants | Through piston rod |
| Operating pressure | 11.6psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.7J | Theoretical force at 6 bar, retracting | 1750N |
| Theoretical force at 6 bar, advancing | 1750N | Type of mounting | Optionally: With through-hole With accessories |
| Pneumatic connection | G1/8 | Flange screws material | Steel, galvanized |
| Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy |
| Manufacturer ID | 156057 |
Specifications may be subject to change without notice
