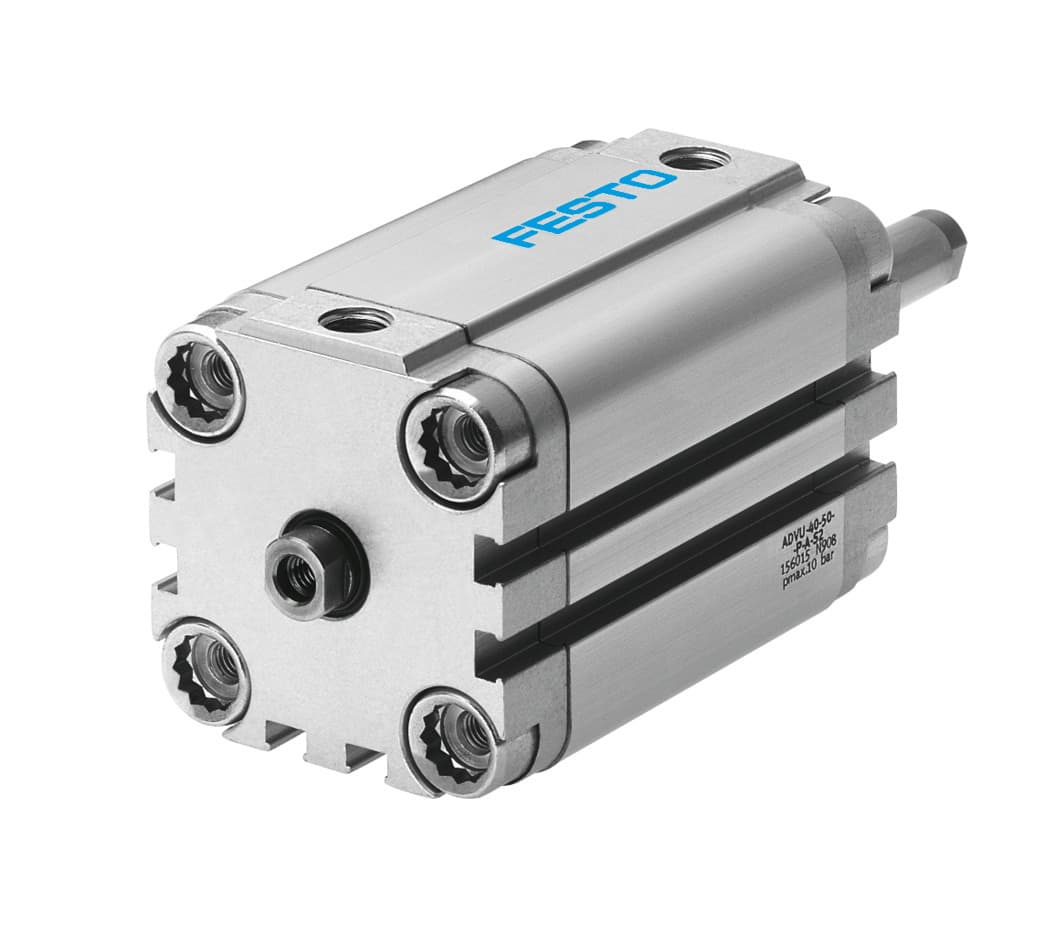

advu-80- -p-a-s2
Product ID:2881
Updated: 2026/4/3
Key Features
- 1Operate efficiently with compressed air per ISO 8573-1:2010 standards. 2、Select from a wide range of customizable variants and thread options. 3、Reduce noise using elastic silencer rings and double-sided dampening. 4、Enable precise control via integrated position sensing proximity switches. 5、Withstand industrial conditions with moderate corrosion resistance CRC Class 2.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 400mm | Piston diameter | 80 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Piston rod end | Internal thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991219 | Variants | Through piston rod |
| Operating pressure | 11.6psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.75J | Theoretical force at 6 bar, retracting | 2827N |
| Theoretical force at 6 bar, advancing | 2827N | Type of mounting | Optionally: With through-hole With accessories |
| Pneumatic connection | G1/8 | Flange screws material | Steel, galvanized |
| Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy |
| Manufacturer ID | 156018 |
Specifications may be subject to change without notice
