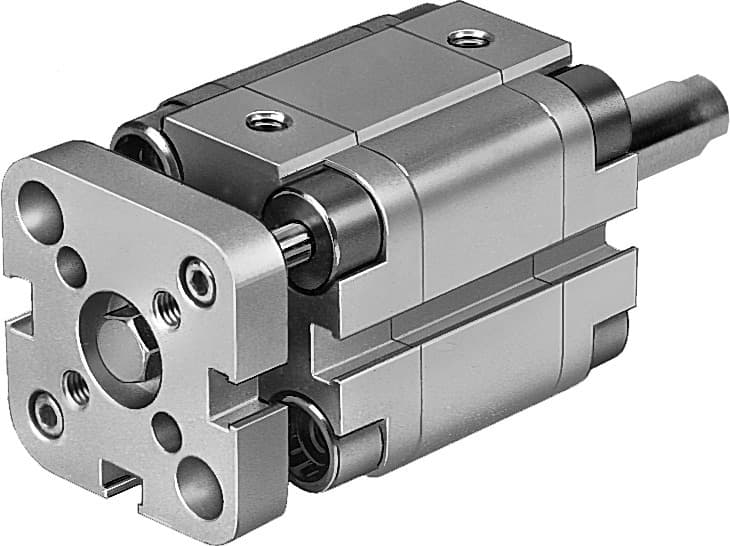

advul-16- -p-a-s2
Product ID:4980
Updated: 2026/4/4
Key Features
- 1Engineer high-performance pneumatic operations with the ADVUL-16- -P-A-S2. 2、Fit into tight spaces using a compact 10mm stroke design. 3、Construct with high-alloy stainless steel for corrosion resistance. 4、Operate at 0.15 to 1 MPa for versatile force application. 5、Ensure smooth motion via elastic cushioning rings at both ends.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 200mm | Piston diameter | 16 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991735 | Variants | Through piston rod |
| Protection against torsion/guide | Guide rod with yoke | Operating pressure | 1.5bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.1J | Theoretical force at 6 bar, retracting | 90N |
| Theoretical force at 6 bar, advancing | 90N | Type of mounting | Optionally: With through-hole With accessories |
| Pneumatic connection | M5 | Flange screws material | High-alloy stainless steel |
| Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | Wrought aluminum alloy |
| Manufacturer ID | 165090 |
Specifications may be subject to change without notice
