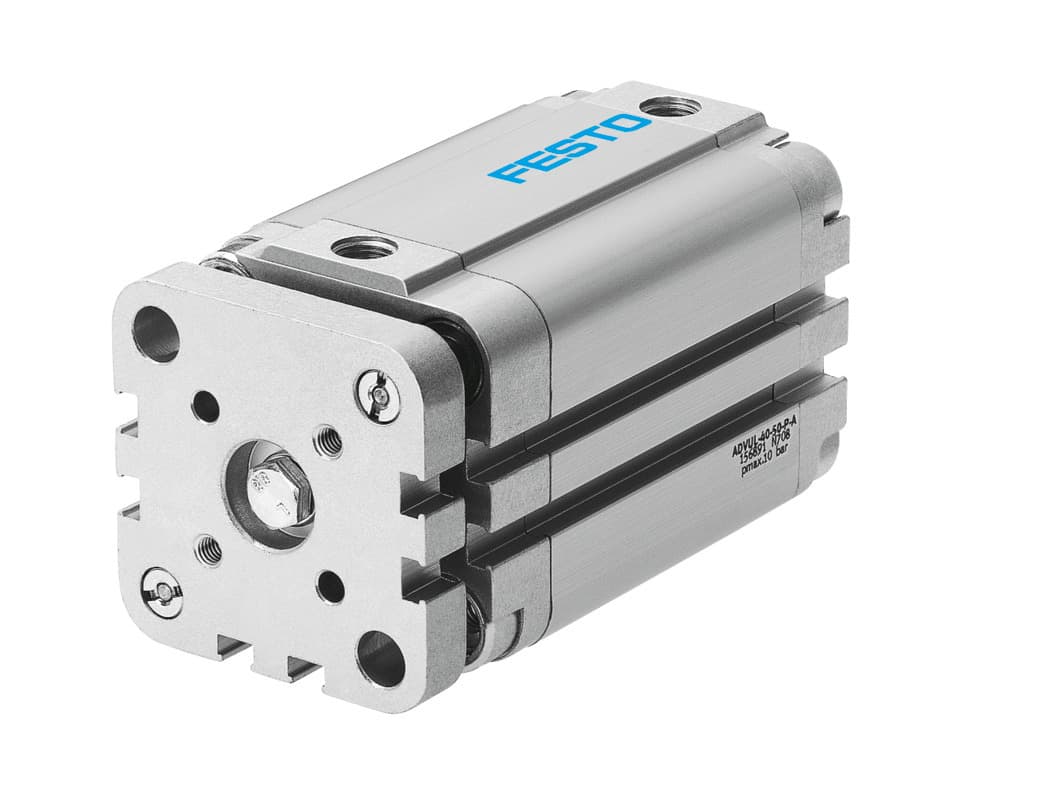

advul-32- -p-a-s6
Product ID:3018
Updated: 2026/4/3
Key Features
- 1Optimize efficiency with high-performance compact air cylinders for industrial automation. 2、Enhance durability using high-alloy stainless steel piston rods. 3、Secure robust mounting with galvanized steel flange screws. 4、Achieve precise control via double-acting operation in both directions. 5、Ensure suitability for varied environments with CRC 2 corrosion resistance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 300mm | Piston diameter | 32 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991737 | Variants | Heat-resistant seals max. 120°C |
| Protection against torsion/guide | Guide rod with yoke | Operating pressure | 1bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 0°C 120°C |
| Impact energy in the end positions | 0.4J | Theoretical force at 6 bar, retracting | 415N |
| Theoretical force at 6 bar, advancing | 483N | Type of mounting | Optionally: With through-hole With accessories |
| Pneumatic connection | G1/8 | Flange screws material | Steel, galvanized |
| Cover material | Wrought aluminum alloy | Material of dynamic seals | FPM |
| Piston rod material | High-alloy stainless steel | Material of cylinder barrel | Wrought aluminum alloy |
| Manufacturer ID | 156214 |
Specifications may be subject to change without notice
