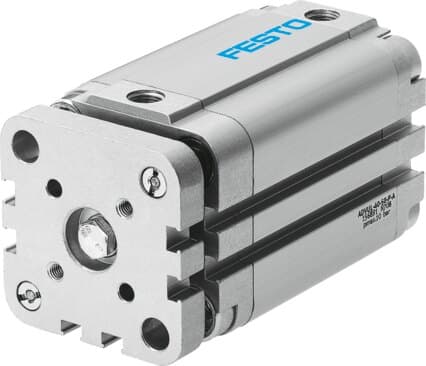

Key Features
- 1Piston diameter: 40 mm
- 2Theoretical force at 6 bar, forward stroke: 754 N
- 3Stroke: 1 / 300 mm
- 4Cushioning: Elastic cushioning rings/buffers at both ends
- 5Position detection: Via proximity switch
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Material of cylinder barrel | High-alloy aluminum | Material of piston rod | High-alloy steel |
| Material of dynamic seals | NBR / TPE-U(PU) | Material of cover | High-alloy aluminum |
| Material of eye screw | Galvanized steel | Pneumatic connection | G1/8 |
| Mounting type | With through-holes / With accessories | Additional weight for every 10 m stroke | 45 g |
| Basic weight for 0 mm stroke | 517 g | Additional moving mass for every 10 mm stroke | 17 g |
| Moving mass for 0 mm stroke | 147 g | Theoretical force at 6 bar, forward stroke | 754 N |
| Theoretical force at 6 bar, return stroke | 686 N | Impact energy at end positions | 0.52 J |
| Ambient temperature | -20 / 80 °C | Paint-wetting impairment substances (PWIS) conformity | VDMA24364-B1/B2-L |
| Corrosion resistance class CRC | 2 - Moderate corrosion resistance | Note on operating and pilot medium | Can be operated with lubricated medium (subsequently always requires lubricated medium) |
| Operating medium | Compressed air in accordance with ISO 8573-1:2010 [7:4:4] | Operating mode | Double-acting |
| Operating pressure | 1 / 10 bar | Torque/Guide protection | Guide rod with connecting plate |
| Variant | Single-ended piston rod | Symbol | 00991737 |
| Position detection | Via proximity switch | Design feature | Cylinder bore / Piston rod |
| Mounting position | Optional | Cushioning | Elastic cushioning rings/buffers at both ends |
| Piston diameter | 40 mm | Stroke | 1 / 300 mm |
Specifications may be subject to change without notice
