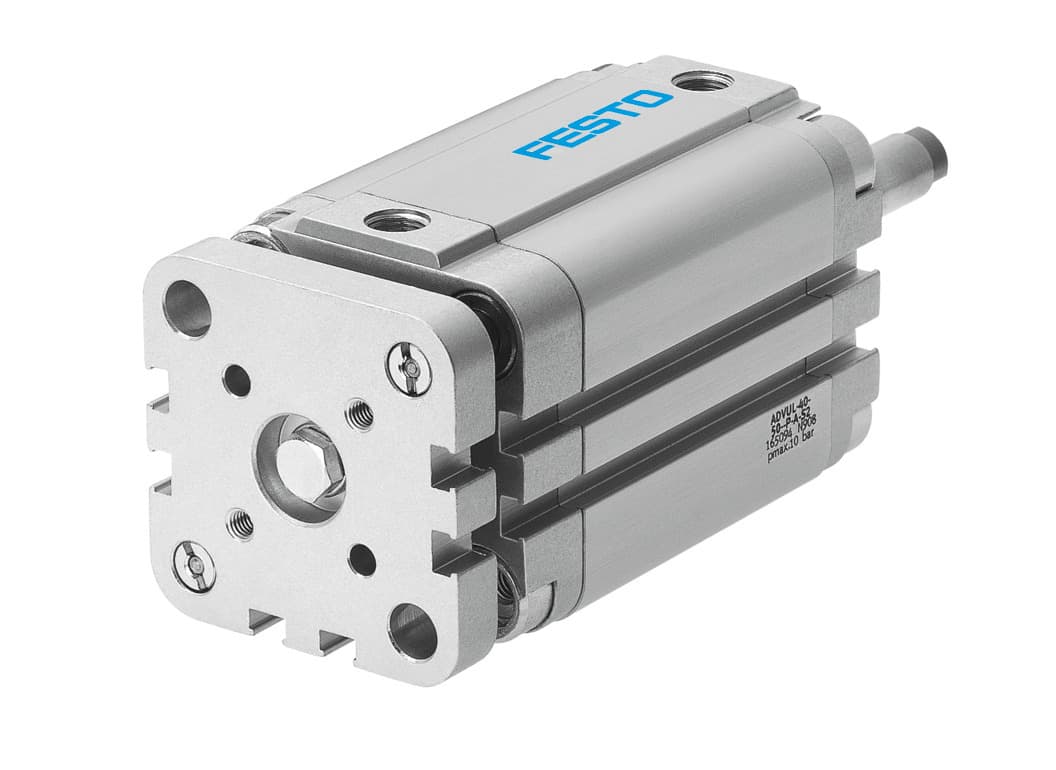

advul-50- -p-a-s2
Product ID:4985
Updated: 2026/4/4
Key Features
- 1Optimize pneumatic systems with the compact ADVUL-50-50-P-A-S2 cylinder. 2、Ensure durability using high-alloy steel piston rods. 3、Achieve precise control across a 0.1-1 MPa pressure range. 4、Enhance efficiency with double-acting operation. 5、Simplify integration via standard pneumatic connections.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 300mm | Piston diameter | 50 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991735 | Variants | Through piston rod |
| Protection against torsion/guide | Guide rod with yoke | Operating pressure | 1bar 10bar |
| Mode of operation | Double-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.64J | Theoretical force at 6 bar, retracting | 1057N |
| Theoretical force at 6 bar, advancing | 1057N | Type of mounting | Optionally: With through-hole With accessories |
| Pneumatic connection | G1/8 | Flange screws material | Steel, galvanized |
| Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy |
| Manufacturer ID | 165095 |
Specifications may be subject to change without notice
