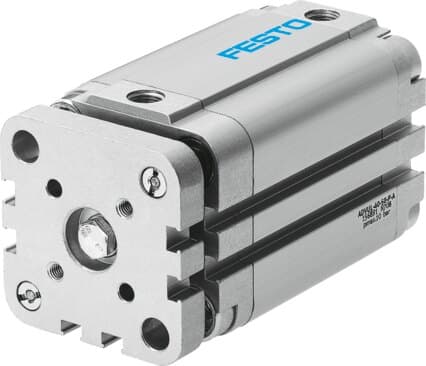

Key Features
- 1Piston diameter: 80 mm
- 2Theoretical force at 6 bar, forward stroke: 3016 N
- 3Stroke: 1 / 400 mm
- 4Cushioning: Elastic cushioning rings/pads at both ends
- 5Position detection: Via proximity switch
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cylinder barrel material | Wrought aluminium alloy | Piston rod material | High-alloy steel |
| Dynamic seal material | NBR / TPE-U(PU) | Cover material | Wrought aluminium alloy |
| Eye screw material | Galvanized steel | Pneumatic connection | G1/8 |
| Mounting type | Through-holes / With accessories | Additional weight per 10 m stroke | 97 g |
| Basic weight for 0 mm stroke | 2150 g | Additional moving mass per 10 mm stroke | 43 g |
| Moving mass for 0 mm stroke | 685 g | Theoretical force at 6 bar, forward stroke | 3016 N |
| Theoretical force at 6 bar, return stroke | 2827 N | Impact energy at end positions | 0.75 J |
| Ambient temperature | -20 / 80 °C | Paint-wetting impairment substance (PWIS) conformity | VDMA24364-B1/B2-L |
| Corrosion resistance class CRC | 2 - Moderate corrosion resistance | Note on operating and pilot medium | Can be operated with lubricated medium (subsequently must always be operated with lubricated medium) |
| Operating medium | Compressed air conforming to ISO 8573-1:2010 [7:4:4] | Operating mode | Double acting |
| Operating pressure | 1 / 10 bar | Torque/guide protection | Guide rod with coupling plate |
| Variant | Single-ended piston rod | Symbol | 00991737 |
| Position detection | Via proximity switch | Design feature | Piston diameter / Piston rod |
| Mounting position | Optional | Cushioning | Elastic cushioning rings/pads at both ends |
| Piston diameter | 80 mm | Stroke | 1 / 400 mm |
Specifications may be subject to change without notice
