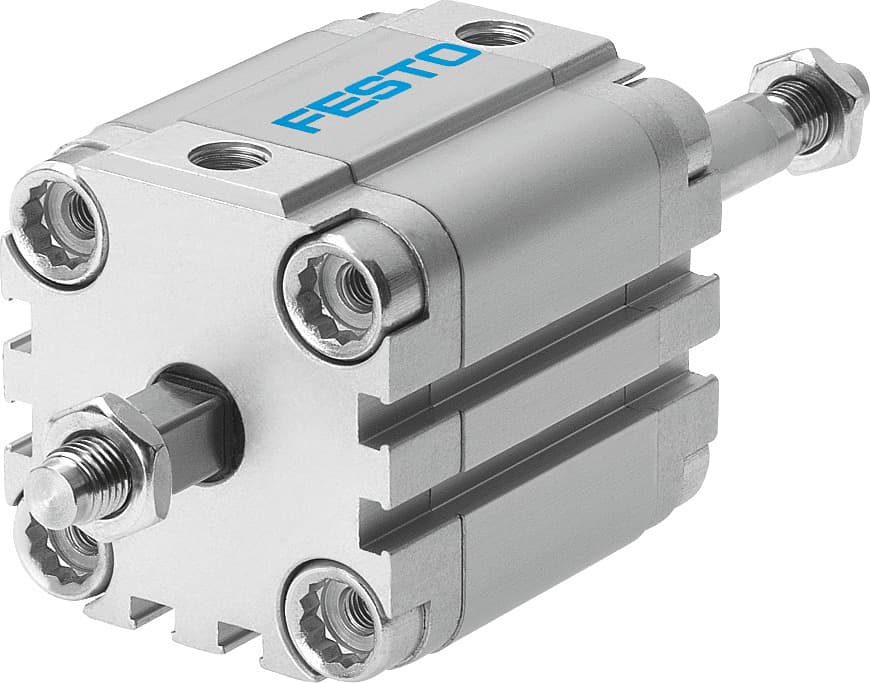

advulq-100- -a-p-a-s2
Product ID:2982
Updated: 2026/4/3
Key Features
- 1Feature a compact design with a versatile 1 mm to 400 mm stroke range. 2、Operate double-acting for equal force in extension and retraction strokes. 3、Ensure smooth operation with flexible cushioning rings at both ends. 4、Provide precise position detection via proximity sensing for accurate control. 5、Withstand moderate corrosion stress with CRC 2 resistance for durability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 400mm | Piston diameter | 100 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Piston rod end | External thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991219 | Variants | Through piston rod |
| Protection against torsion/guide | Square piston rod | Operating pressure | 14.5psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 1J |
| Theoretical force at 6 bar, retracting | 4418N | Theoretical force at 6 bar, advancing | 4418N |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | G1/4 |
| Flange screws material | Steel, galvanized | Cover material | Wrought aluminum alloy |
| Material of dynamic seals | NBR TPE-U(PU) | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy | Manufacturer ID | 156159 |
