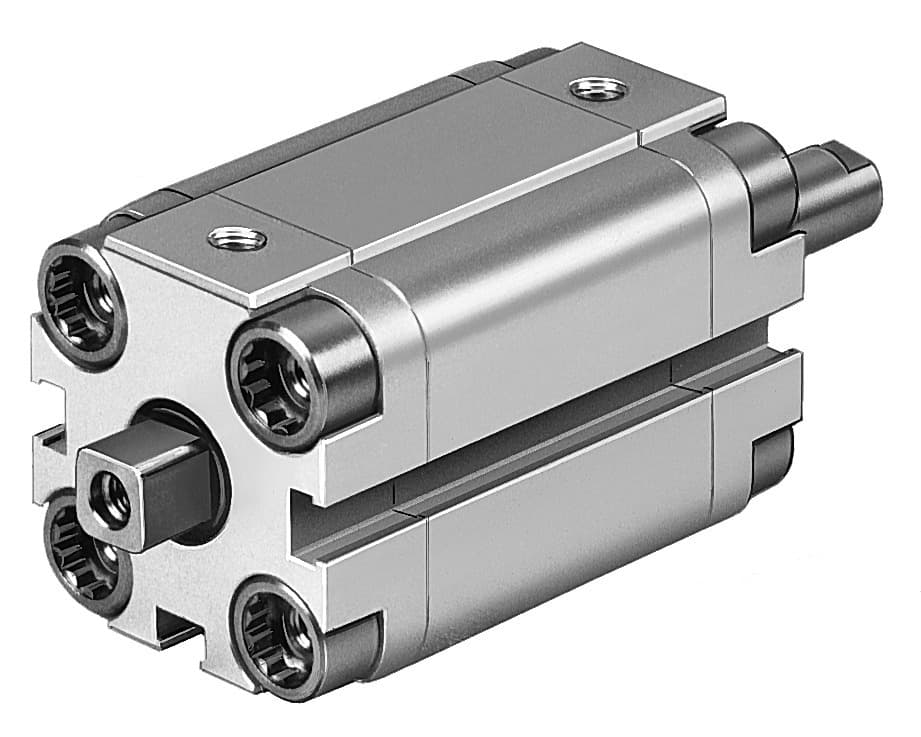

advulq-16- -p-a-s2
Product ID:2944
Updated: 2026/4/3
Key Features
- 1Ensure smooth operation with elastic cushioning rings at both ends. 2、Achieve precise control for medium to heavy loads. 3、Install flexibly using multiple optional mounting positions. 4、Maximize uptime in high-speed, double-acting applications. 5、Select the ideal stroke from 1 to 200 mm range.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 200mm | Piston diameter | 16 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Piston rod end | Internal thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991219 | Variants | Through piston rod |
| Protection against torsion/guide | Square piston rod | Operating pressure | 21.75psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.1J |
| Theoretical force at 6 bar, retracting | 90N | Theoretical force at 6 bar, advancing | 90N |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
| Flange screws material | High-alloy stainless steel | Cover material | Wrought aluminum alloy |
| Material of dynamic seals | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | Wrought aluminum alloy | Manufacturer ID | 156111 |
Specifications may be subject to change without notice
