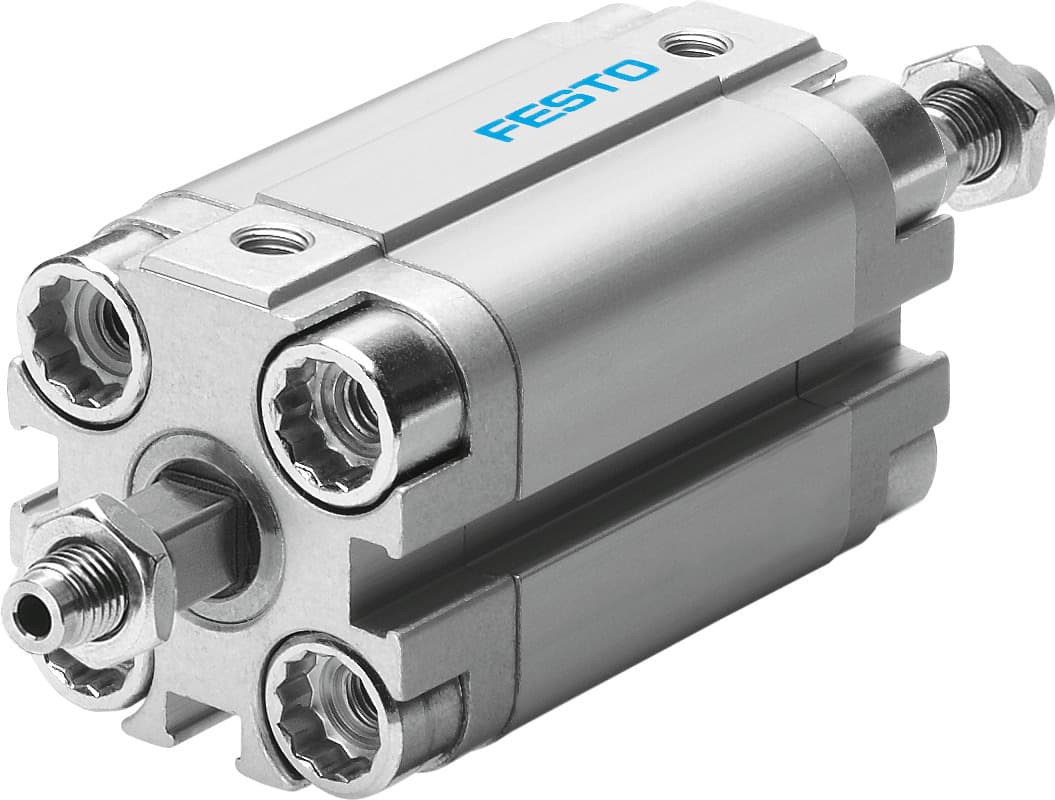

advulq-20- -a-p-a-s20
Product ID:2984
Updated: 2026/4/3
Key Features
- 1Maximize space with a compact design for constrained layouts. 2、Reduce wear using elastic cushioning rings at both ends. 3、Enable precise control via integrated position sensing. 4、Achieve bidirectional motion with double-acting operation. 5、Ensure durability with moderate CRC Class 2 corrosion resistance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 200mm | Piston diameter | 20 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Piston rod end | External thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991218 | Variants | Through, hollow piston rod |
| Protection against torsion/guide | Square piston rod | Operating pressure | 17.4psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.014J |
| Theoretical force at 6 bar, retracting | 141N | Theoretical force at 6 bar, advancing | 141N |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
| Flange screws material | Steel, galvanized | Cover material | Wrought aluminum alloy |
| Material of dynamic seals | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | Wrought aluminum alloy | Manufacturer ID | 156162 |
Specifications may be subject to change without notice
