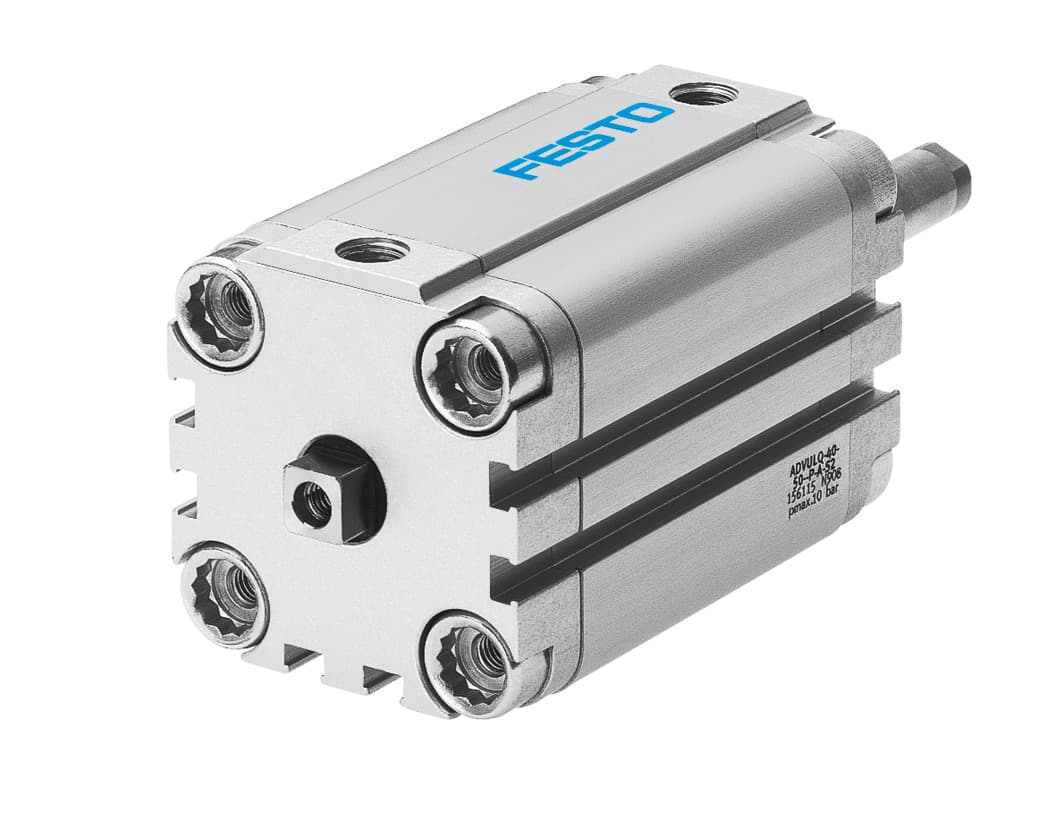

advulq-32- -p-a-s2
Product ID:2947
Updated: 2026/7/7
Key Features
- 1Achieve precise 40 mm stroke for accurate movement.
- 2Protect against impact with flexible cushioning rings.
- 3Operate reliably from 0.8 to 10 bar pressure.
- 4Ensure durability with high-alloy stainless steel.
- 5Integrate flexibly with optional mounting positions.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 300mm | Piston diameter | 32 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Piston rod end | Internal thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991219 | Variants | Through piston rod |
| Protection against torsion/guide | Square piston rod | Operating pressure | 14.5psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.4J |
| Theoretical force at 6 bar, retracting | 415N | Theoretical force at 6 bar, advancing | 415N |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | G1/8 |
| Flange screws material | Steel, galvanized | Cover material | Wrought aluminum alloy |
| Material of dynamic seals | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | Wrought aluminum alloy | Manufacturer ID | 156114 |
Specifications may be subject to change without notice
