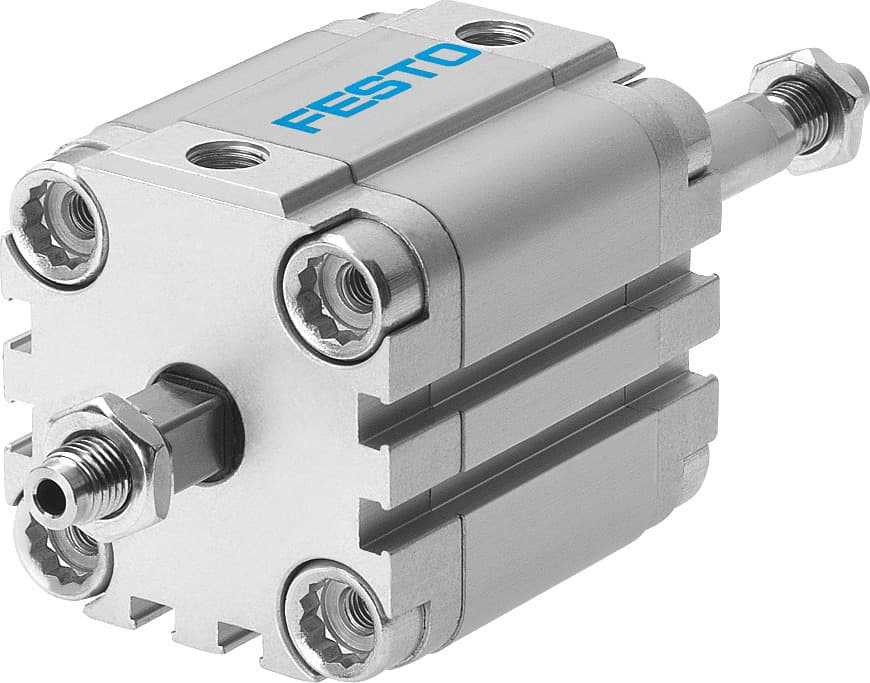

advulq-63- -a-p-a-s20
Product ID:2989
Updated: 2026/7/7
Key Features
- 1Optimize performance with a 63mm piston and 40mm stroke.
- 2Extend service life using flexible cushioning rings.
- 3Enable versatile double-acting advancing and retracting strokes.
- 4Ensure reliable operation with ISO 8573-1:2010 compressed air.
- 5Build durability with high-alloy steel and aluminum alloy.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 300mm | Piston diameter | 63 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Piston rod end | External thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991218 | Variants | Through, hollow piston rod |
| Protection against torsion/guide | Square piston rod | Operating pressure | 14.5psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.07J |
| Theoretical force at 6 bar, retracting | 1750N | Theoretical force at 6 bar, advancing | 1750N |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | G1/8 |
| Flange screws material | Steel, galvanized | Cover material | Wrought aluminum alloy |
| Material of dynamic seals | NBR TPE-U(PU) | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy | Manufacturer ID | 156167 |
Specifications may be subject to change without notice
