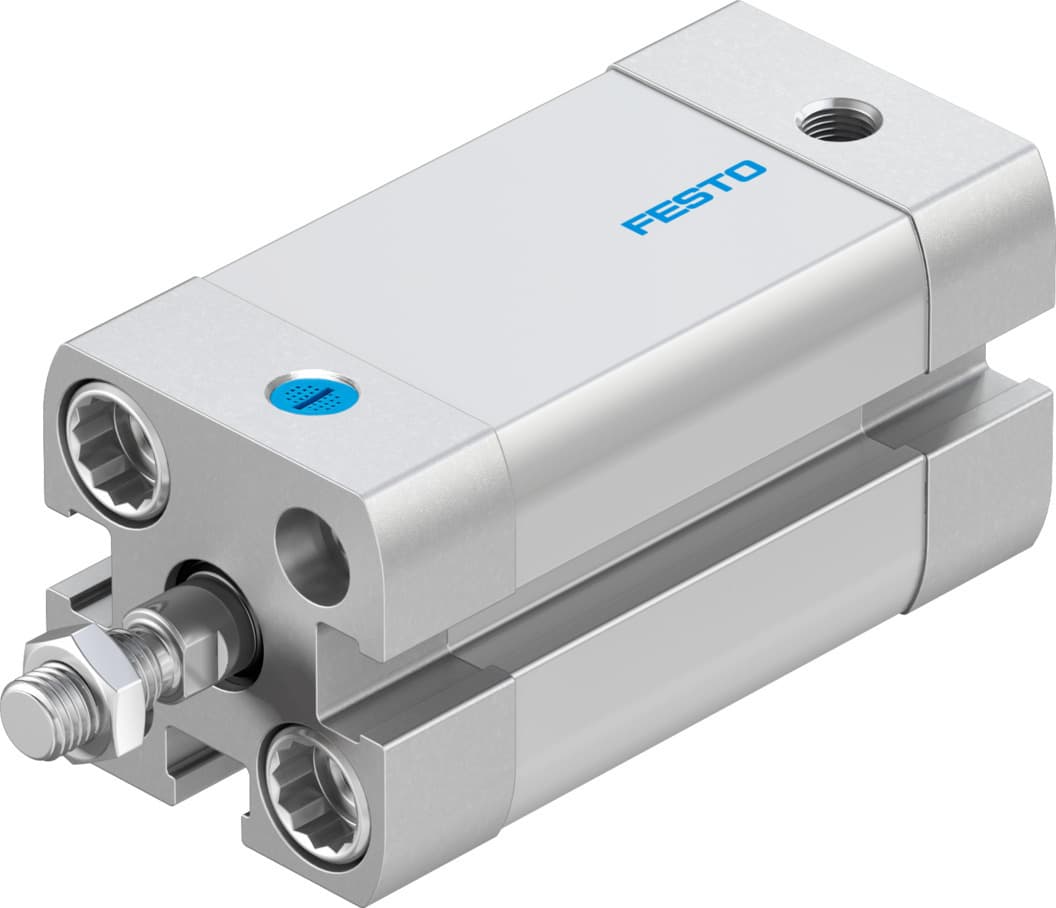

aen-12- -
Product ID:10177
Updated: 2026/4/4
Key Features
- 1Offer a versatile 1 mm to 10 mm stroke range for precise movement. 2、Ensure smooth operation with elastic cushioning at both ends. 3、Provide durability via a high-alloy steel piston rod. 4、Guarantee system compatibility per ISO 21287 standard. 5、Support a wide 0.15-1 MPa operating pressure range.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 10mm | Piston diameter | 12 mm |
| Based on norm | ISO 21287 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Pushing Single-acting Pulling |
| Structural design | Piston Piston rod Profile barrel | Position sensing | For proximity sensor |
| Variants | Improved running performance Extended external thread piston rod Special thread on piston rod Extended piston rod Heat-resistant seals max. 120°C Laser etched rating plate Pulling Piston rod at one end | Operating pressure | 21.75psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 120°C | Theoretical force at 6 bar, retracting | 35N |
| Theoretical force at 6 bar, advancing | 54N | Weight surcharge per 10 mm piston rod extension | 2g |
| Weight surcharge per 10 mm piston rod thread extension | 2g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Manufacturer ID | 536414 |
Specifications may be subject to change without notice
