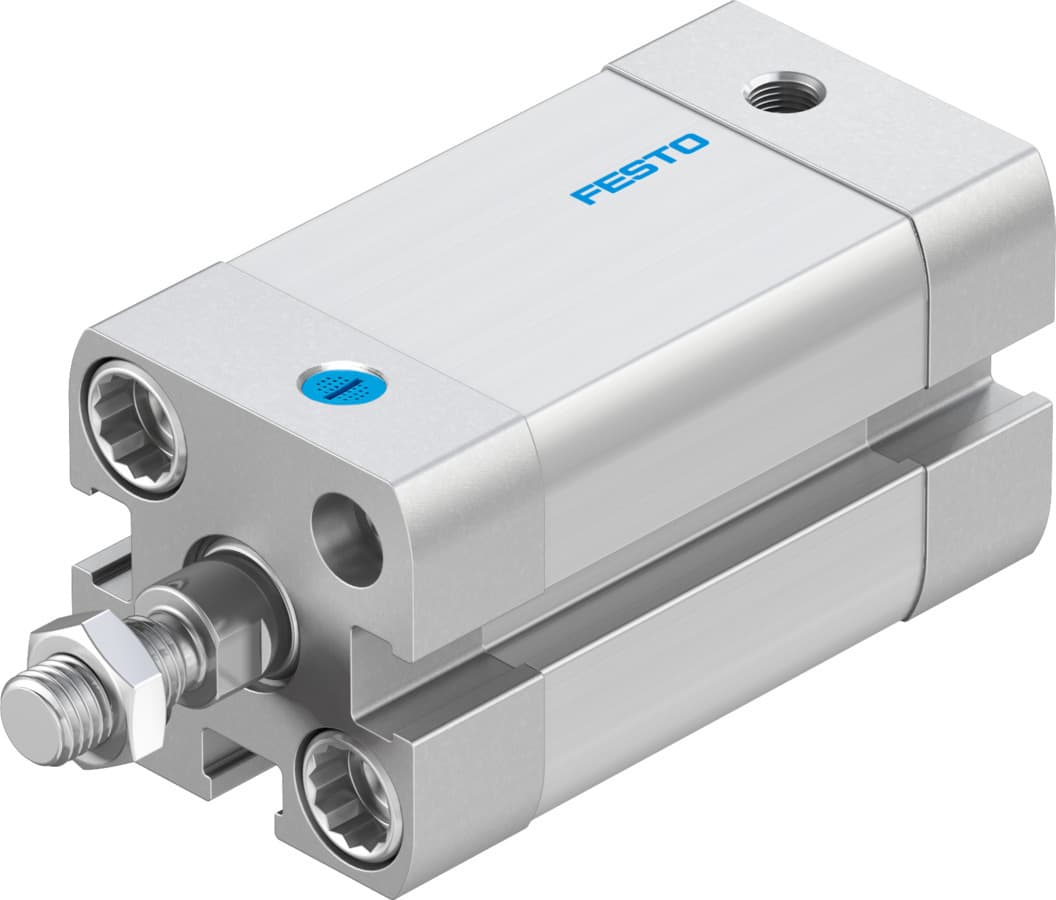

aen-16- -
Product ID:10178
Updated: 2026/4/4
Key Features
- 1Engineer high-performance pneumatic automation with the Festo AEN-16- compact cylinder. 2、Reduce noise and vibration by 30% with integrated elastic cushioning rings. 3、Install flexibly using through-hole, female thread, or accessory mounting options. 4、Ensure durability in harsh conditions with corrosion-resistant anodized aluminum. 5、Optimize space and weight in compact machinery with the lightweight design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 25mm | Piston diameter | 16 mm |
| Based on norm | ISO 21287 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Pushing Single-acting Pulling |
| Structural design | Piston Piston rod Profile barrel | Position sensing | For proximity sensor |
| Variants | Improved running performance Extended external thread piston rod Special thread on piston rod Extended piston rod With anti-twist protection Heat-resistant seals max. 120°C Laser etched rating plate Pulling Piston rod at one end | Operating pressure | 21.75psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 120°C | Theoretical force at 6 bar, retracting | 58N |
| Theoretical force at 6 bar, advancing | 88N | Weight surcharge per 10 mm piston rod extension | 4g |
| Weight surcharge per 10 mm piston rod thread extension | 2g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Manufacturer ID | 536415 |
Specifications may be subject to change without notice
