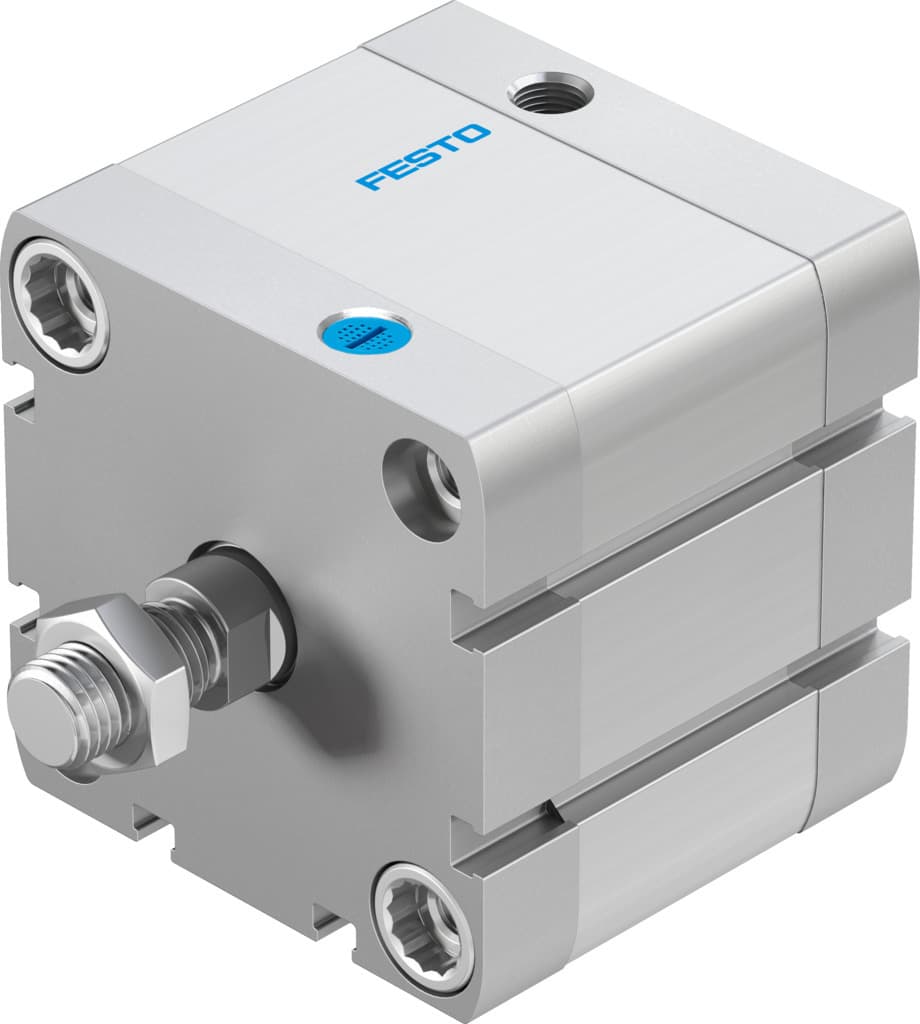

aen-63- -
Product ID:10184
Updated: 2026/4/4
Key Features
- 1Achieve precise movement with a stroke length from 1 mm to 25 mm. 2、Ensure robust operation via a 63 mm piston diameter and elastic cushioning. 3、Mount the cylinder in any position for flexible system integration. 4、Utilize anodised aluminium alloy and stainless steel for corrosion resistance. 5、Enhance accuracy with an integrated proximity switch for position detection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 25mm | Piston diameter | 63 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Conforms to standard | ISO 21287 | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Variants | Improved running performance Extended external thread piston rod Special thread on piston rod Extended piston rod With anti-twist protection Heat-resistant seals max. 120°C Laser etched rating plate Pulling Piston rod at one end |
| Operating pressure | 1bar 10bar | Mode of operation | Pushing Single-acting Pulling |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 120°C | Theoretical force at 6 bar, retracting | 1617N |
| Theoretical force at 6 bar, advancing | 1737N | Weight surcharge per 10 mm piston rod extension | 16g |
| Weight surcharge per 10 mm piston rod thread extension | 9g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Manufacturer ID | 536421 |
