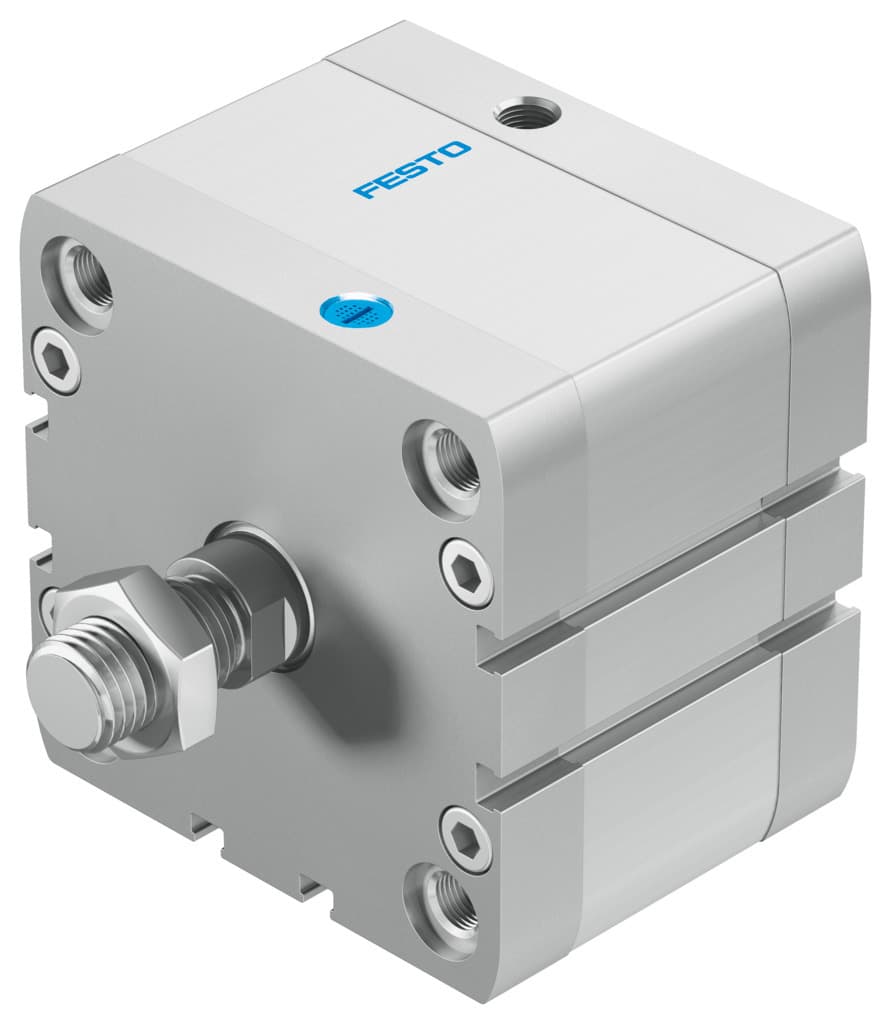

aen-80- -
Product ID:10185
Updated: 2026/4/4
Key Features
- 1Improve running performance with elastic cushioning rings at both ends. 2、Choose flexible mounting via through-hole or female thread options. 3、Ensure durability with a high-alloy steel piston rod. 4、Operate reliably in temperatures from -20°C to 120°C. 5、Conform to ISO 21287 and LABS (PWIS) industry standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 25mm | Piston diameter | 80 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Conforms to standard | ISO 21287 | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Variants | Improved running performance Extended external thread piston rod Special thread on piston rod Extended piston rod With anti-twist protection Heat-resistant seals max. 120°C Laser etched rating plate Pulling Piston rod at one end |
| Operating pressure | 1bar 10bar | Mode of operation | Pushing Single-acting Pulling |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 120°C | Theoretical force at 6 bar, retracting | 2640N |
| Theoretical force at 6 bar, advancing | 2810N | Weight surcharge per 10 mm piston rod extension | 25g |
| Weight surcharge per 10 mm piston rod thread extension | 16g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Flange screws material | Steel | Cover material | Die-cast aluminum, coated |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Manufacturer ID | 536422 |
Specifications may be subject to change without notice
