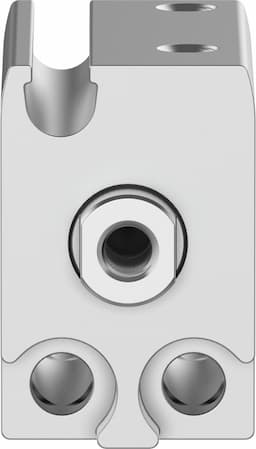

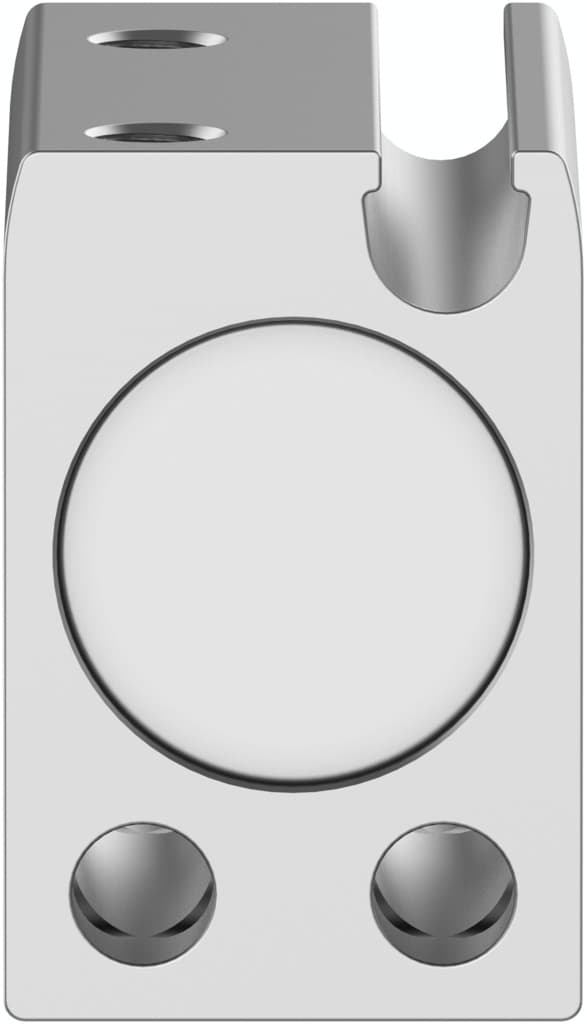

aen-s-10-10-i-a
Product ID:9033
Updated: 2026/7/16
Key Features
- 1Utilize a high-alloy stainless steel piston rod.
- 2Operate with a 10mm stroke and piston diameter.
- 3Integrate easily via female thread rod end.
- 4Generate force within 1.5 to 8 bar pressure.
- 5Ensure compliance with ISO8573-1:2010 standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 10 mm |
| Cushioning | No cushioning | Mounting position | Any |
| Mode of operation | Pushing | Piston rod end | Internal thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991201 | Variants | Piston rod at one end |
| Operating pressure | 1.5bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -10°C 60°C |
| Impact energy in the end positions | 0.012J | Theoretical force at 6 bar, retracting | 5.3N |
| Theoretical force at 6 bar, advancing | 41.7N | Moving mass | 5.7g |
| Product weight | 19g | Type of mounting | With through-hole |
| Pneumatic connection | M3 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
| Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 5269269 |
Specifications may be subject to change without notice
