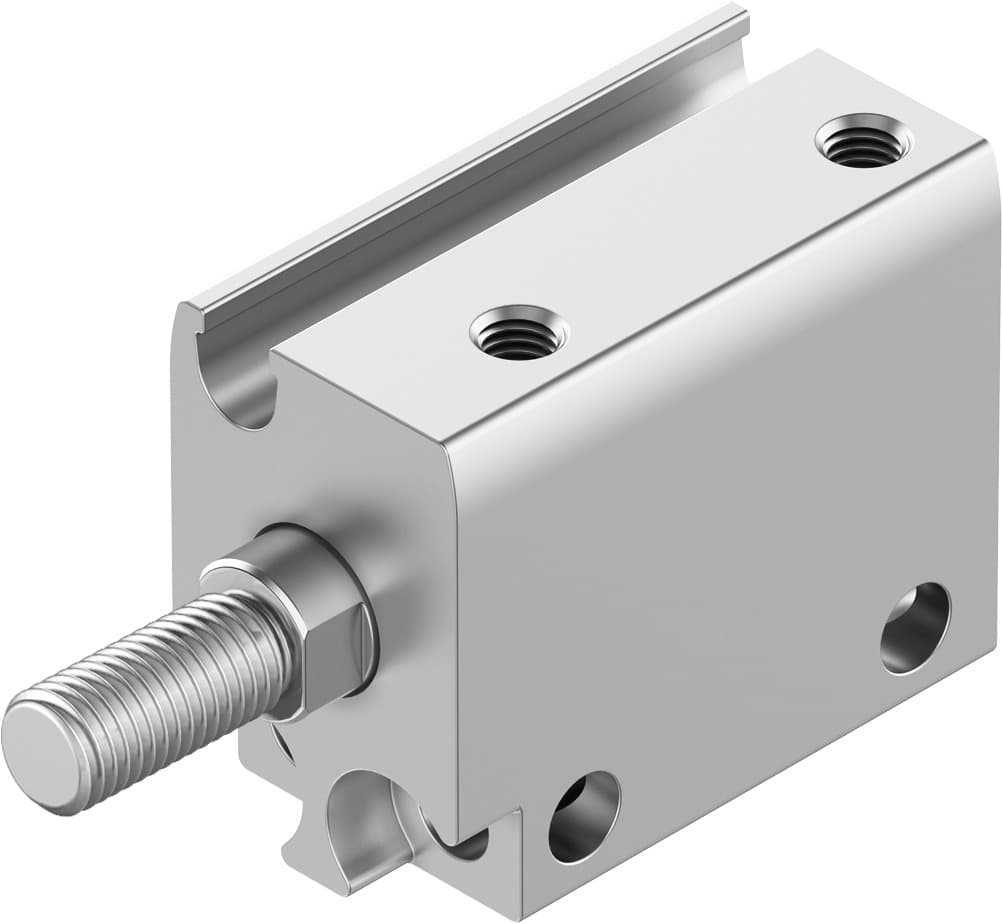

aen-s-10-5-a-a
Product ID:16409
Updated: 2026/4/3
Key Features
- 1Utilize a high-alloy stainless steel piston rod for enhanced durability and corrosion resistance. 2、Maximize space efficiency with a compact 10mm bore and 5mm stroke design. 3、Operate reliably with compressed air meeting ISO 8573-1:2010 standards. 4、Achieve precise control and minimal energy loss with a non-cushioned design. 5、Enable accurate position sensing through compatibility with proximity sensors.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 5mm | Piston diameter | 10 mm |
| Cushioning | No cushioning | Mounting position | Any |
| Mode of operation | Pushing | Piston rod end | External thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991201 | Variants | Piston rod at one end |
| Operating pressure | 1.5bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -10°C 60°C |
| Impact energy in the end positions | 0.012J | Theoretical force at 6 bar, retracting | 5.3N |
| Theoretical force at 6 bar, advancing | 41.7N | Moving mass | 4.5g |
| Product weight | 17g | Type of mounting | With through-hole |
| Pneumatic connection | M3 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
| Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 8080584 |
