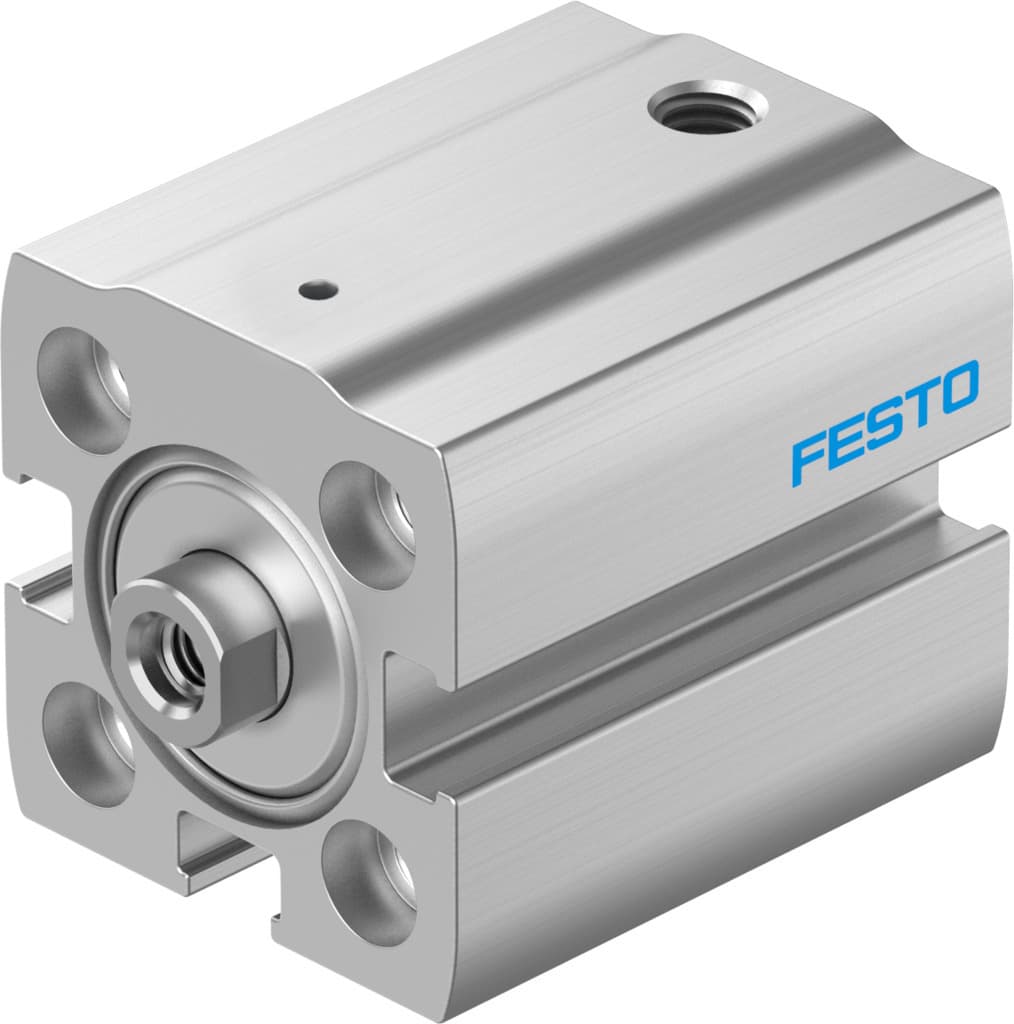

aen-s-16-25-i-p-a
Product ID:16377
Updated: 2026/7/17
Key Features
- 1Utilize a high-alloy stainless steel piston rod for superior durability and corrosion resistance.
- 2Integrate elastic cushioning at both ends to ensure smooth operation and minimize wear.
- 3Select optional mounting positions via through-hole or female thread for versatile installation.
- 4Operate with compressed air meeting ISO 8573-1:2010 for reliable, certified performance.
- 5Benefit from low corrosion stress (CRC 1) for long service life in diverse environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 25mm | Piston diameter | 16 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Pushing | Piston rod end | Internal thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991729 | Variants | Piston rod at one end |
| Operating pressure | 1bar 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | 0°C 60°C |
| Impact energy in the end positions | 0.038J | Theoretical force at 6 bar, retracting | 25N |
| Theoretical force at 6 bar, advancing | 95N | Moving mass at 0?mm stroke | 11g |
| Additional moving mass per 10?mm stroke | 4g | Basic weight with 0?mm stroke | 42g |
| Additional weight per 10?mm stroke | 18g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy, anodized | Material of dynamic seals | NBR TPE-U(PU) |
| Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 8076494 |
Specifications may be subject to change without notice
