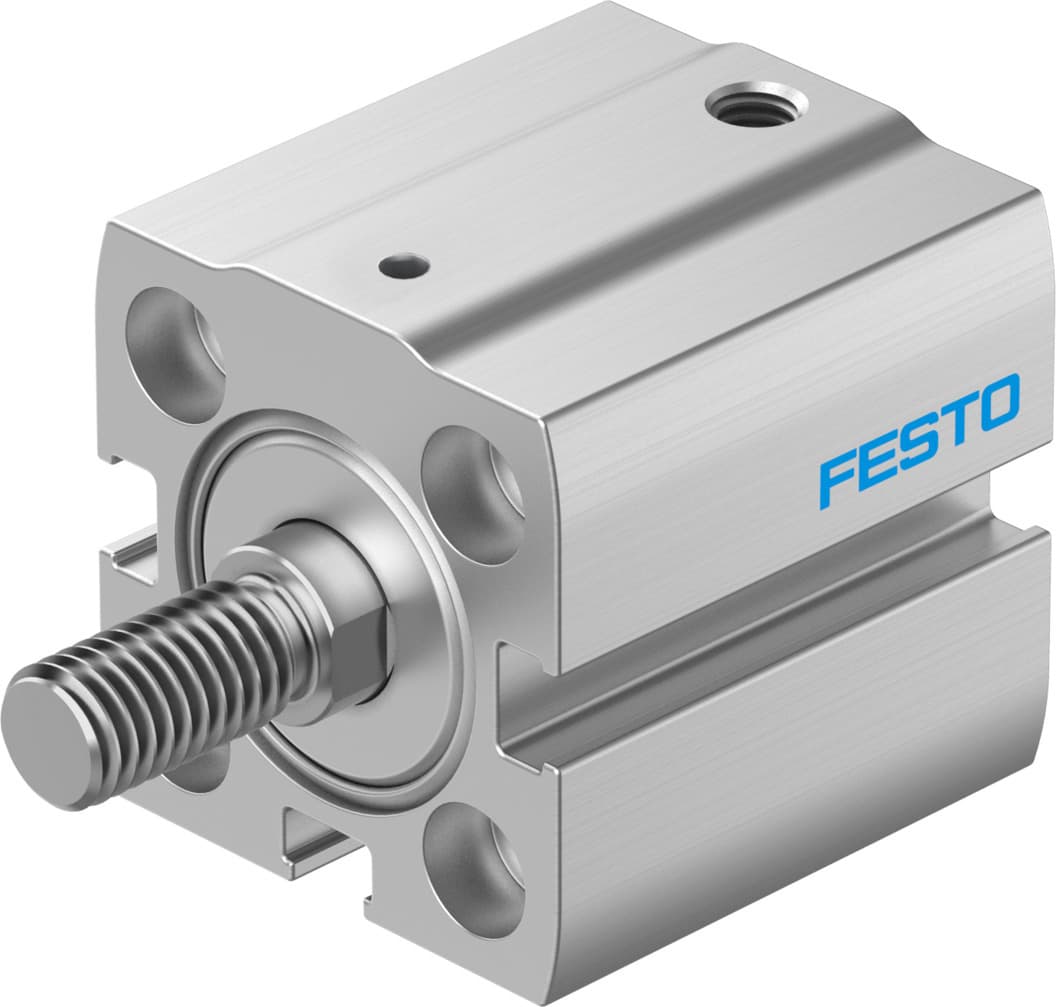

aen-s-20-5-a-p-a
Product ID:16665
Updated: 2026/7/4
Key Features
- 1Maximize space with a compact 65 x 60 x 55 mm design.
- 2Reduce wear using elastic cushioning at both ends.
- 3Achieve robust performance with 0.06-1 MPa operating pressure.
- 4Gain mounting flexibility with through-hole and thread options.
- 5Ensure compliance with RoHS-certified materials.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 5mm | Piston diameter | 20 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Pushing | Piston rod end | External thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991729 | Variants | Piston rod at one end |
| Operating pressure | 0.6bar 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | 0°C 60°C |
| Impact energy in the end positions | 0.055J | Theoretical force at 6 bar, retracting | 13N |
| Theoretical force at 6 bar, advancing | 162N | Moving mass at 0?mm stroke | 18g |
| Additional moving mass per 10?mm stroke | 6g | Basic weight with 0?mm stroke | 65g |
| Additional weight per 10?mm stroke | 26g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy, anodized | Material of dynamic seals | NBR TPE-U(PU) |
| Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 8092222 |
Specifications may be subject to change without notice
