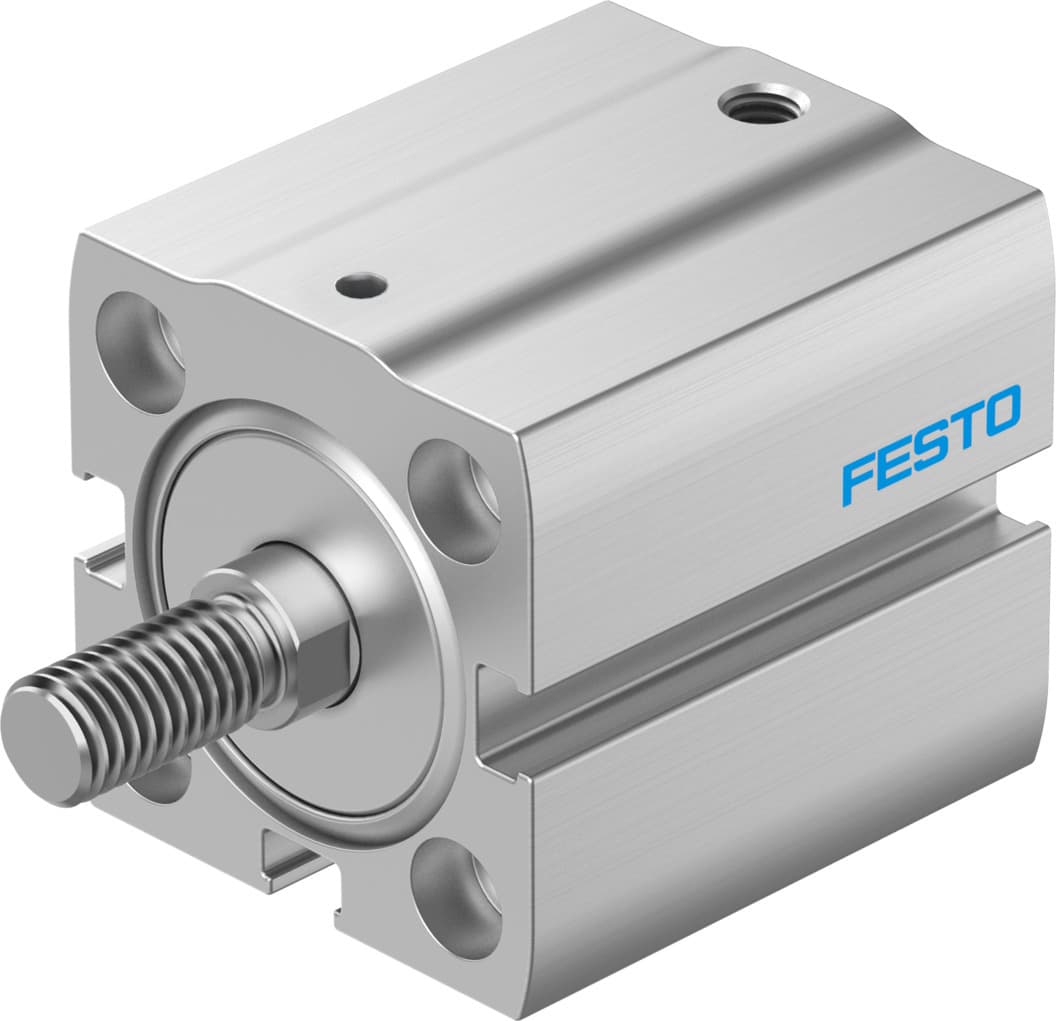

aen-s-25-10-a-p
Product ID:16658
Updated: 2026/7/4
Key Features
- 1Ensure smooth operation and reduce cylinder wear with elastic cushioning.
- 2Allow flexible installation to suit various application requirements.
- 3Provide durability and corrosion resistance in demanding environments.
- 4Meet ISO 8573-1:2010 standards for reliable pneumatic performance.
- 5Conform to CRC 1 for minimal corrosion impact on longevity.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 25 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Pushing | Piston rod end | External thread |
| Structural design | Piston Piston rod | Symbol | 00991730 |
| Variants | Piston rod at one end | Operating pressure | 0.6bar 10bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 0°C 60°C | Impact energy in the end positions | 0.09J |
| Theoretical force at 6 bar, retracting | 22N | Theoretical force at 6 bar, advancing | 259N |
| Moving mass at 0?mm stroke | 17g | Additional moving mass per 10?mm stroke | 6g |
| Basic weight with 0?mm stroke | 70g | Additional weight per 10?mm stroke | 30g |
| Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy, anodized |
| Material of dynamic seals | NBR | Housing material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy stainless steel | Manufacturer ID | 8092179 |
Specifications may be subject to change without notice
