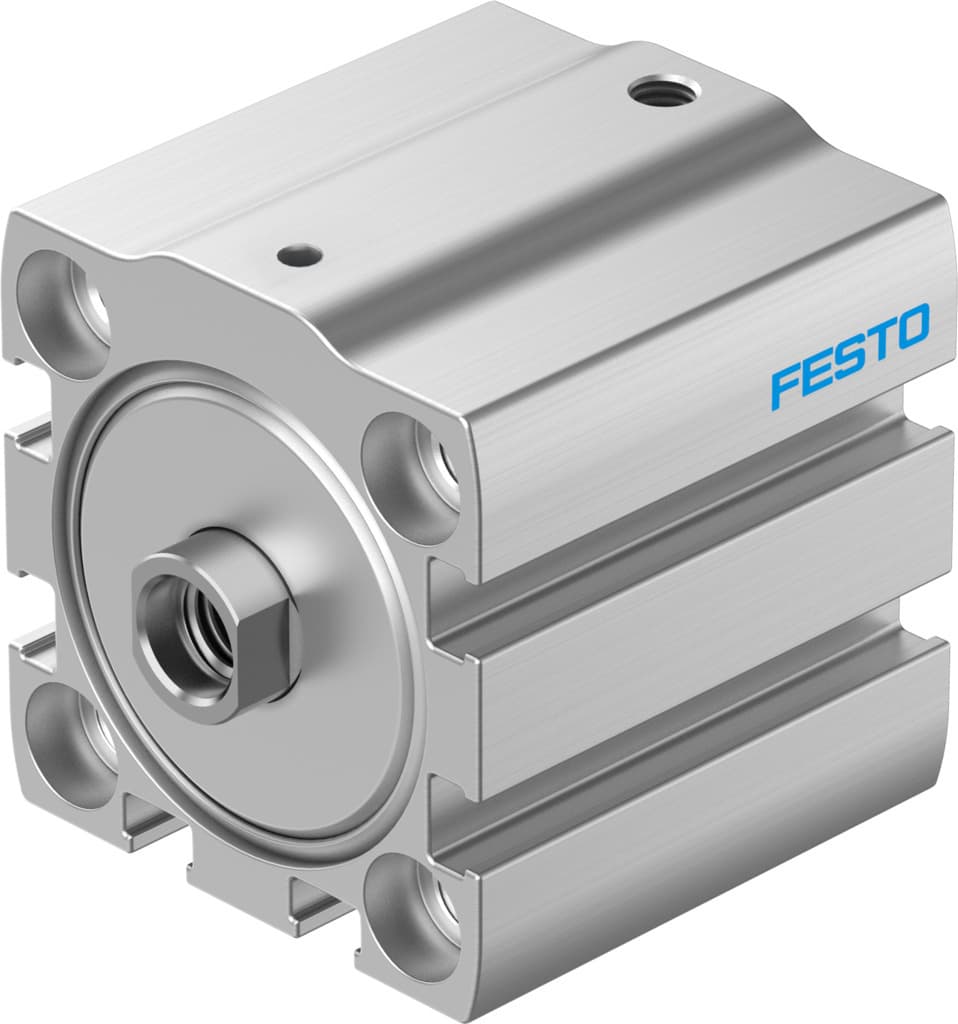

aen-s-32-25-i-p-a
Product ID:16396
Updated: 2026/4/3
Key Features
- 1Achieve high precision and durability with high-alloy stainless steel piston rods. 2、Utilize versatile mounting via through-hole, internal thread, or accessories. 3、Ensure smooth operation with elastic cushioning rings at both ends. 4、Reduce corrosion stress with a corrosion resistance class rating of 1. 5、Operate with compressed air per ISO 8573-1:2010 for reliable performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 25mm | Piston diameter | 32 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Pushing | Piston rod end | Internal thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991729 | Variants | Piston rod at one end |
| Operating pressure | 0.6bar 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | 0°C 60°C |
| Impact energy in the end positions | 0.4J | Theoretical force at 6 bar, retracting | 42N |
| Theoretical force at 6 bar, advancing | 439N | Moving mass at 0?mm stroke | 37g |
| Additional moving mass per 10?mm stroke | 9g | Basic weight with 0?mm stroke | 117g |
| Additional weight per 10?mm stroke | 36g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy, anodized | Material of dynamic seals | NBR TPE-U(PU) |
| Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 8076513 |
Specifications may be subject to change without notice
