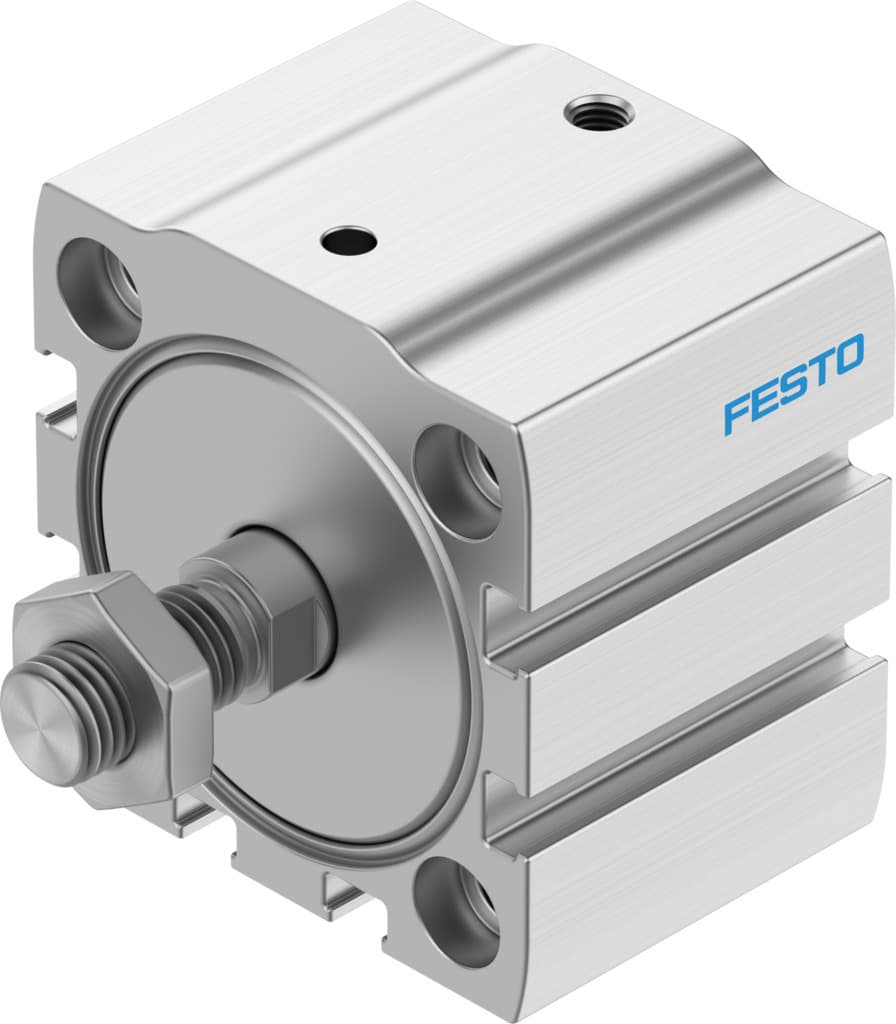

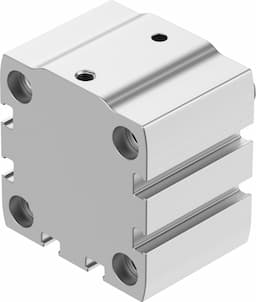

aen-s-40-10-a-p-a
Product ID:16648
Updated: 2026/7/19
Key Features
- 1Achieve high precision and durability with anodized aluminum housing and stainless steel piston rod.
- 2Ensure smooth operation and reduce wear using elastic cushioning rings at both ends.
- 3Enable flexible installation with optional through-hole and female thread mounting positions.
- 4Operate reliably with compressed air meeting ISO 8573-1:2010 standards.
- 5Resist corrosion in various industrial environments with a CRC 1 classification.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 40 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Pushing | Piston rod end | External thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991729 | Variants | Piston rod at one end |
| Operating pressure | 0.6bar 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | 0°C 60°C |
| Impact energy in the end positions | 0.7J | Theoretical force at 6 bar, retracting | 46N |
| Theoretical force at 6 bar, advancing | 700N | Moving mass at 0?mm stroke | 62g |
| Additional moving mass per 10?mm stroke | 9g | Basic weight with 0?mm stroke | 304g |
| Additional weight per 10?mm stroke | 45g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy, anodized | Material of dynamic seals | TPE-U(PU) |
| Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 8092161 |
Specifications may be subject to change without notice
