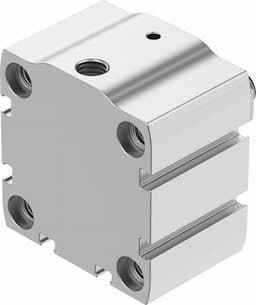

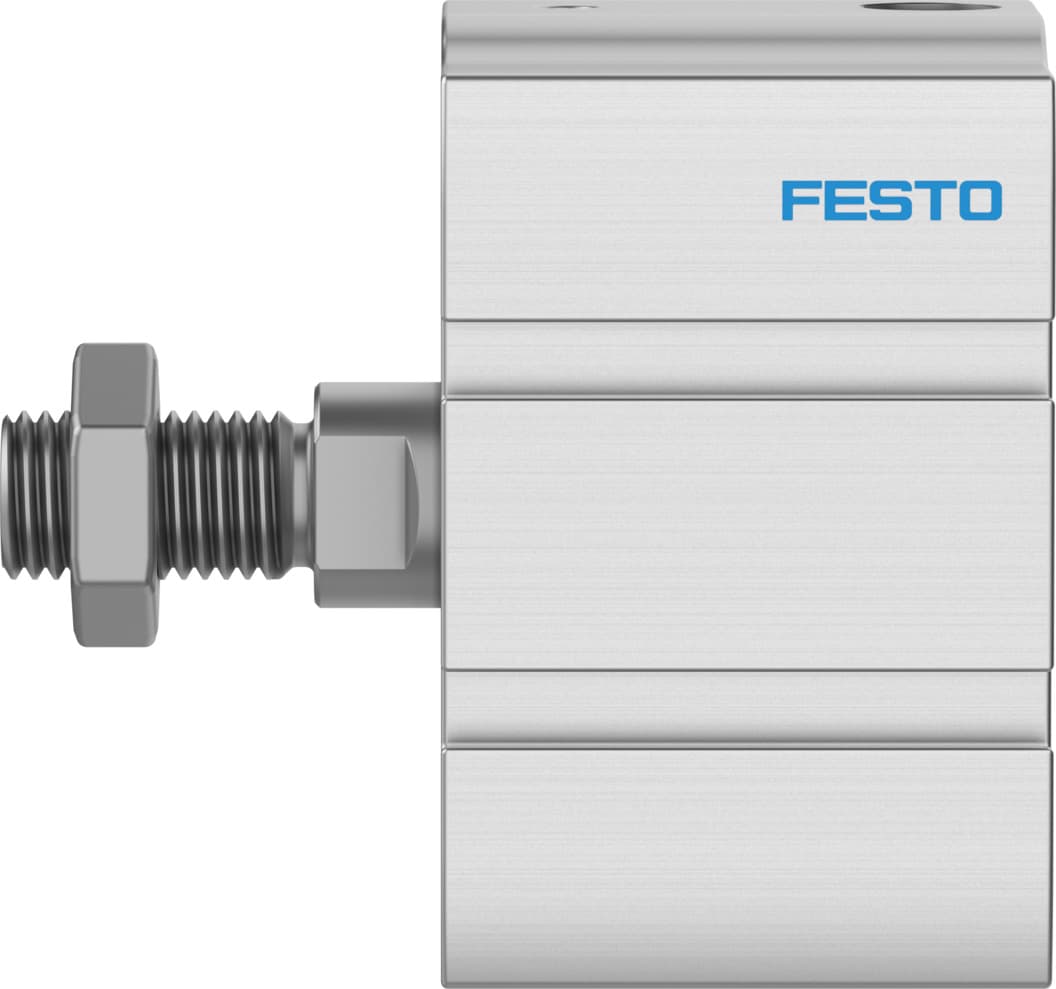

aen-s-50-10-a-p-a
Product ID:16645
Updated: 2026/4/3
Key Features
- 1Save space with a compact design for tight installations. 2、Achieve precise control using a 50mm bore and 10mm stroke. 3、Operate efficiently with single-acting and external thread piston rod. 4、Ensure smooth motion via elastic cushioning rings at both ends. 5、Use compatible compressed air per ISO 8573-1:2010 [7:4:4].
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 50 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Pushing | Piston rod end | External thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991729 | Variants | Piston rod at one end |
| Operating pressure | 0.4bar 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | 0°C 60°C |
| Impact energy in the end positions | 1J | Theoretical force at 6 bar, retracting | 66.2N |
| Theoretical force at 6 bar, advancing | 1106N | Moving mass at 0?mm stroke | 104g |
| Additional moving mass per 10?mm stroke | 16g | Basic weight with 0?mm stroke | 324g |
| Additional weight per 10?mm stroke | 63g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy, anodized | Material of dynamic seals | TPE-U(PU) |
| Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 8092153 |
Specifications may be subject to change without notice
