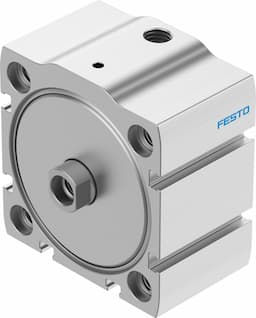

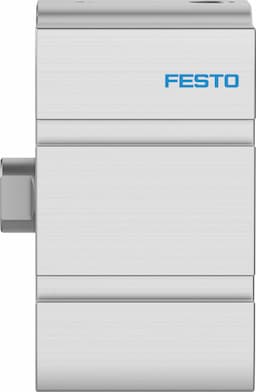

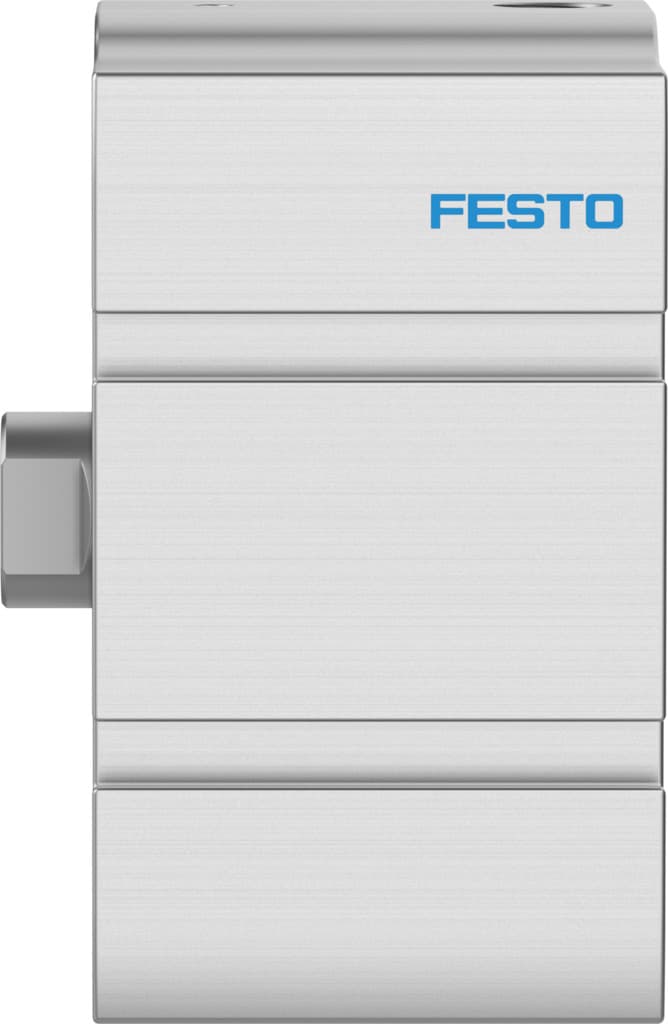

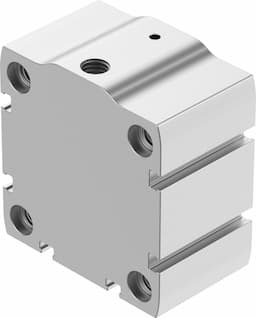

aen-s-63-10-i-p-a
Product ID:8732
Updated: 2026/7/16
Key Features
- 1Construct the AEN-S-63-10-I-P-A from corrosion-resistant stainless steel and aluminum.
- 2Achieve precise 10mm stroke control with a 63mm piston diameter.
- 3Integrate elastic cushioning for smooth operation and reduced wear.
- 4Mount flexibly using through-hole or female thread options.
- 5Operate reliably with ISO 8573-1:2010 compliant compressed air.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 63 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Pushing | Piston rod end | Internal thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991729 | Variants | Piston rod at one end |
| Operating pressure | 0.4bar 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | 0°C 60°C |
| Impact energy in the end positions | 1.3J | Theoretical force at 6 bar, retracting | 69.9N |
| Theoretical force at 6 bar, advancing | 1780N | Moving mass at 0?mm stroke | 151g |
| Additional moving mass per 10?mm stroke | 16g | Basic weight with 0?mm stroke | 499g |
| Additional weight per 10?mm stroke | 77g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy, anodized | Material of dynamic seals | TPE-U(PU) |
| Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 5132651 |
Specifications may be subject to change without notice
