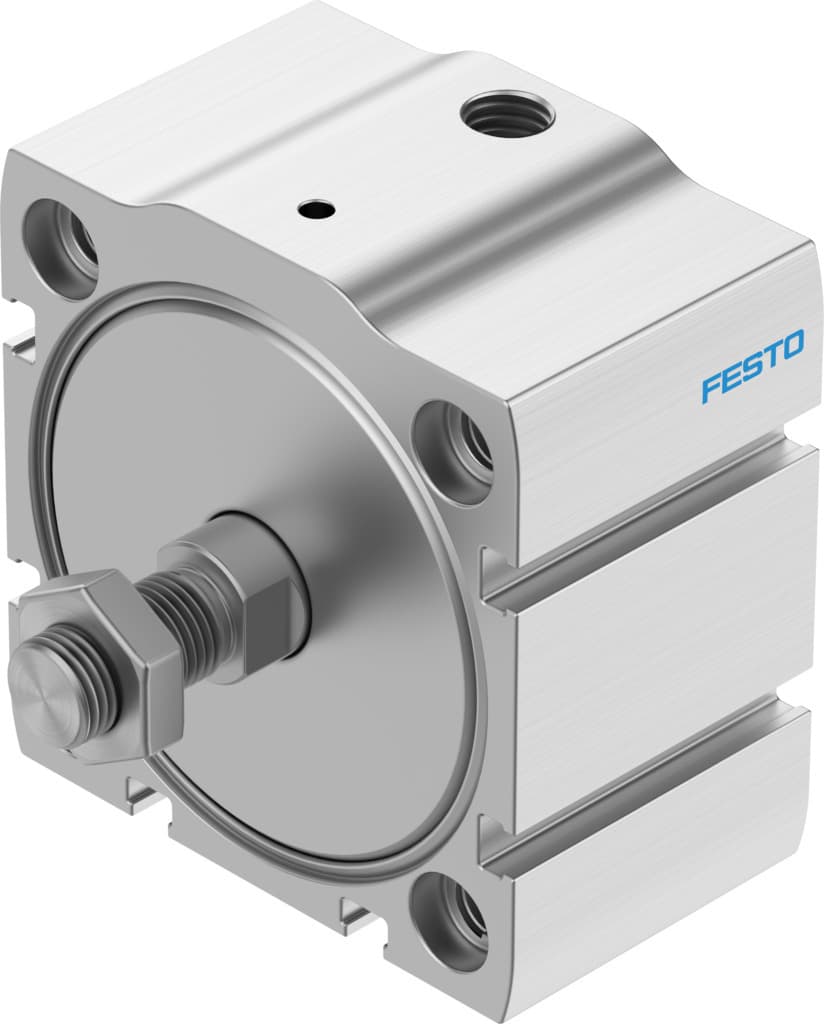

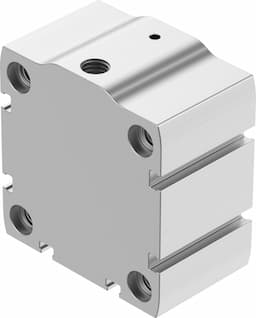

aen-s-63-25-a-p-a
Product ID:16639
Updated: 2026/4/3
Key Features
- 1Achieve high precision with a 63mm piston and 25mm stroke. 2、Reduce wear using elastic cushioning rings at both ends. 3、Install flexibly with multiple optional mounting positions. 4、Ensure durability with anodized aluminum alloy construction. 5、Meet ISO 8573-1:2010 and RoHS compliance standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 25mm | Piston diameter | 63 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Pushing | Piston rod end | External thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991729 | Variants | Piston rod at one end |
| Operating pressure | 0.4bar 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | 0°C 60°C |
| Impact energy in the end positions | 1.3J | Theoretical force at 6 bar, retracting | 89.6N |
| Theoretical force at 6 bar, advancing | 1780N | Moving mass at 0?mm stroke | 151g |
| Additional moving mass per 10?mm stroke | 16g | Basic weight with 0?mm stroke | 499g |
| Additional weight per 10?mm stroke | 77g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy, anodized | Material of dynamic seals | TPE-U(PU) |
| Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 8092146 |
Specifications may be subject to change without notice
