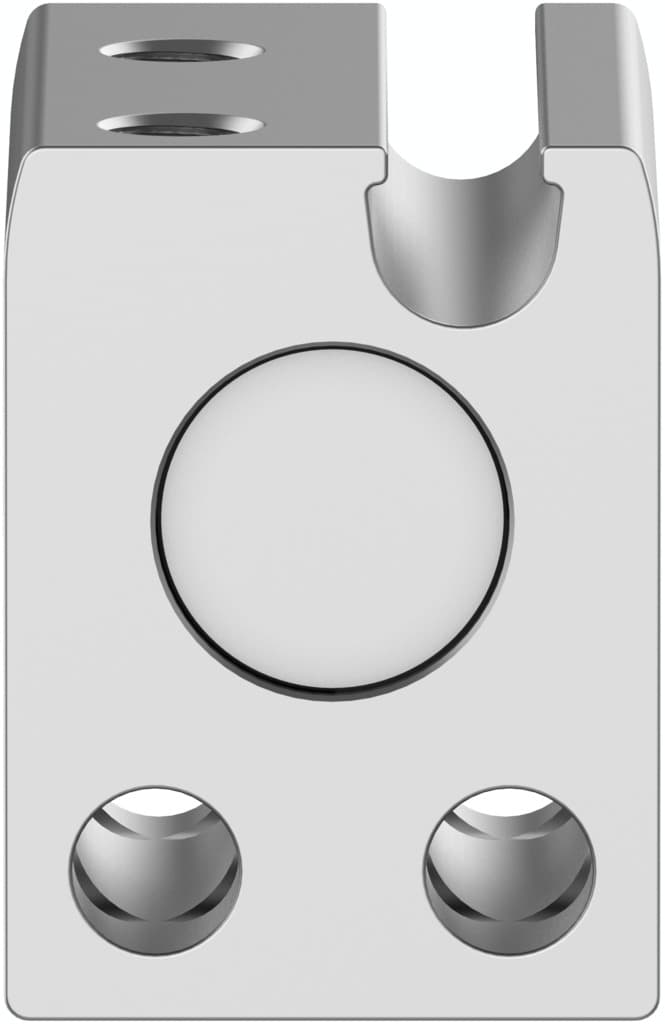

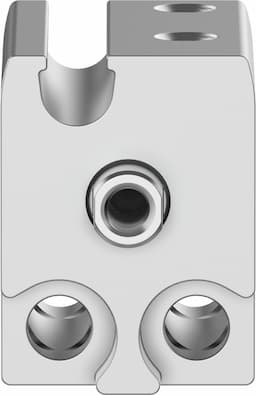

aen-s-6-5-i
Product ID:8716
Updated: 2026/4/4
Key Features
- 1Optimize space with the compact and lightweight AEN-S-6-5-I cylinder. 2、Achieve precise control using the 5 mm stroke and 6 mm piston diameter. 3、Simplify mounting via the internal thread on the piston rod end. 4、Ensure smooth operation and reduce wear with elastic cushioning options. 5、Enhance accuracy and reliability with the magnetic piston for position sensing.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 5mm | Piston diameter | 6 mm |
| Cushioning | No cushioning | Mounting position | Any |
| Mode of operation | Pushing | Piston rod end | Internal thread |
| Structural design | Piston Piston rod | Symbol | 00991200 |
| Variants | Piston rod at one end | Operating pressure | 2.5bar 8bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -10°C 60°C | Impact energy in the end positions | 0.006J |
| Theoretical force at 6 bar, retracting | 4N | Theoretical force at 6 bar, advancing | 13N |
| Moving mass | 1.5g | Product weight | 9.2g |
| Type of mounting | With through-hole | Pneumatic connection | M3 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Material of dynamic seals | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
| Piston rod material | High-alloy stainless steel | Manufacturer ID | 4984929 |
Specifications may be subject to change without notice
