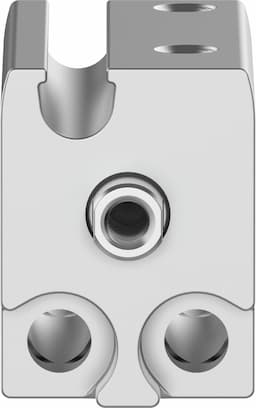

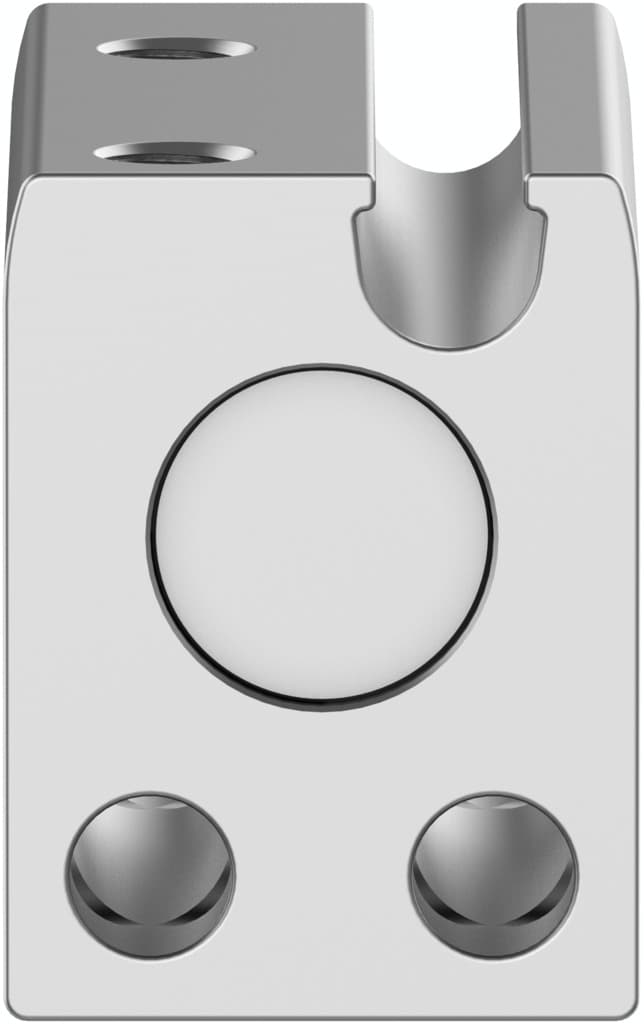

aen-s-6-5-i-a
Product ID:9009
Updated: 2026/4/3
Key Features
- 1Maximize space efficiency with a compact 5 mm stroke design. 2、Operate reliably within a 2.5 to 8 bar pressure range. 3、Resist corrosion in diverse environments with KBK 1 classification. 4、Install flexibly with support for any mounting position. 5、Connect components easily using the female-threaded piston rod.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 5mm | Piston diameter | 6 mm |
| Cushioning | No cushioning | Mounting position | Any |
| Mode of operation | Pushing | Piston rod end | Internal thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991201 | Variants | Piston rod at one end |
| Operating pressure | 2.5bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -10°C 60°C |
| Impact energy in the end positions | 0.006J | Theoretical force at 6 bar, retracting | 4N |
| Theoretical force at 6 bar, advancing | 13N | Moving mass | 1.6g |
| Product weight | 10.9g | Type of mounting | With through-hole |
| Pneumatic connection | M3 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
| Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 5267300 |
Specifications may be subject to change without notice
