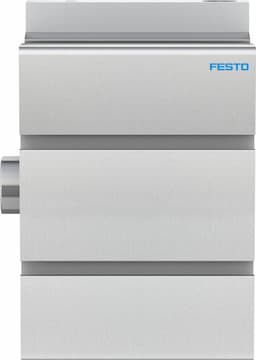

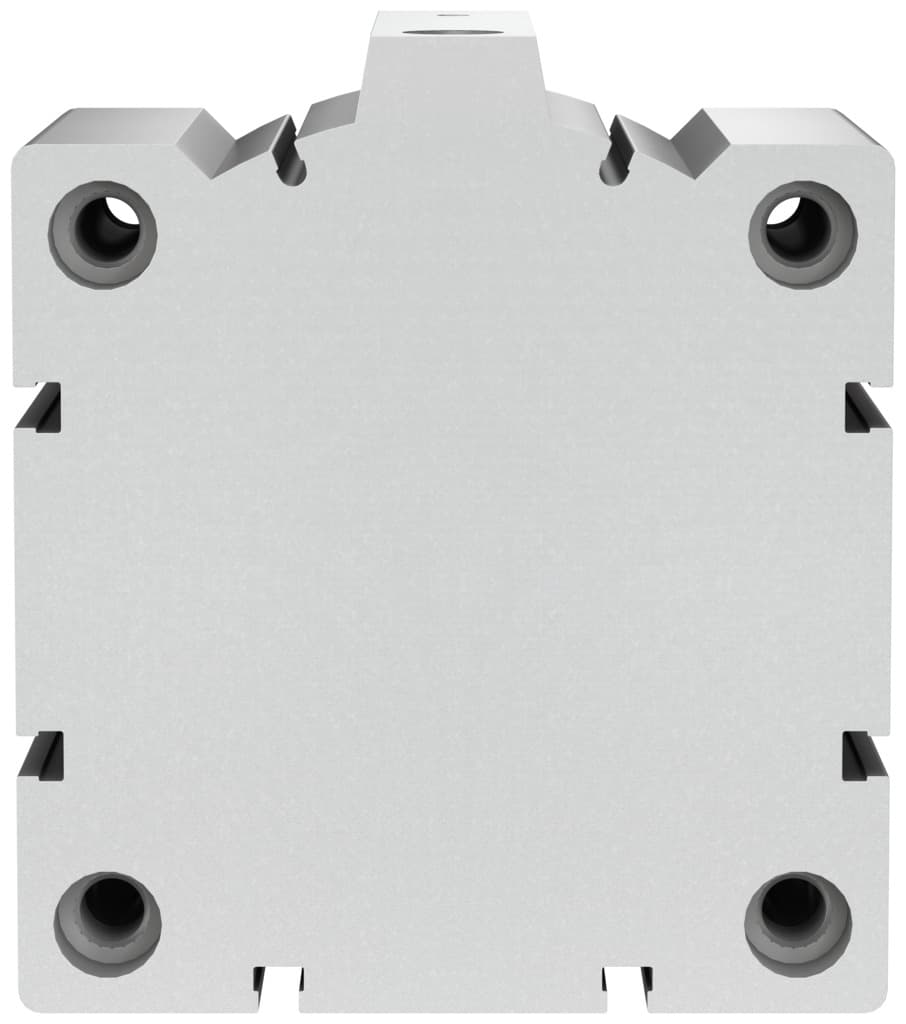

aevc-100-25-i-p-a
Product ID:6463
Updated: 2026/4/3
Key Features
- 1Deliver 140 N spring return force for reliable operation. 2、Achieve precise motion with a 25 mm stroke and elastic cushioning. 3、Integrate easily using VDMA 24562 and ISO 6431 compliant mounts. 4、Maximize space with a compact 100 mm piston diameter design. 5、Ensure durability and low maintenance with robust construction.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 25mm | Piston diameter | 100 mm |
| Spring resetting force with piston rod in retracted position | 140N | Based on norm | ISO 6431 Hole pattern VDMA 24562 |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod |
| Position sensing | For proximity sensor | Symbol | 00991729 |
| Operating pressure | 14.5psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Theoretical force at 6 bar, advancing | 4503N | Moving mass | 604g |
| Product weight | 2250g | Type of mounting | Optionally: With through-hole With accessories |
| Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
| Manufacturer ID | 188325 |
