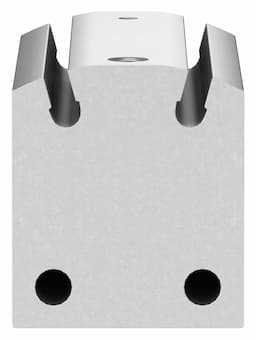

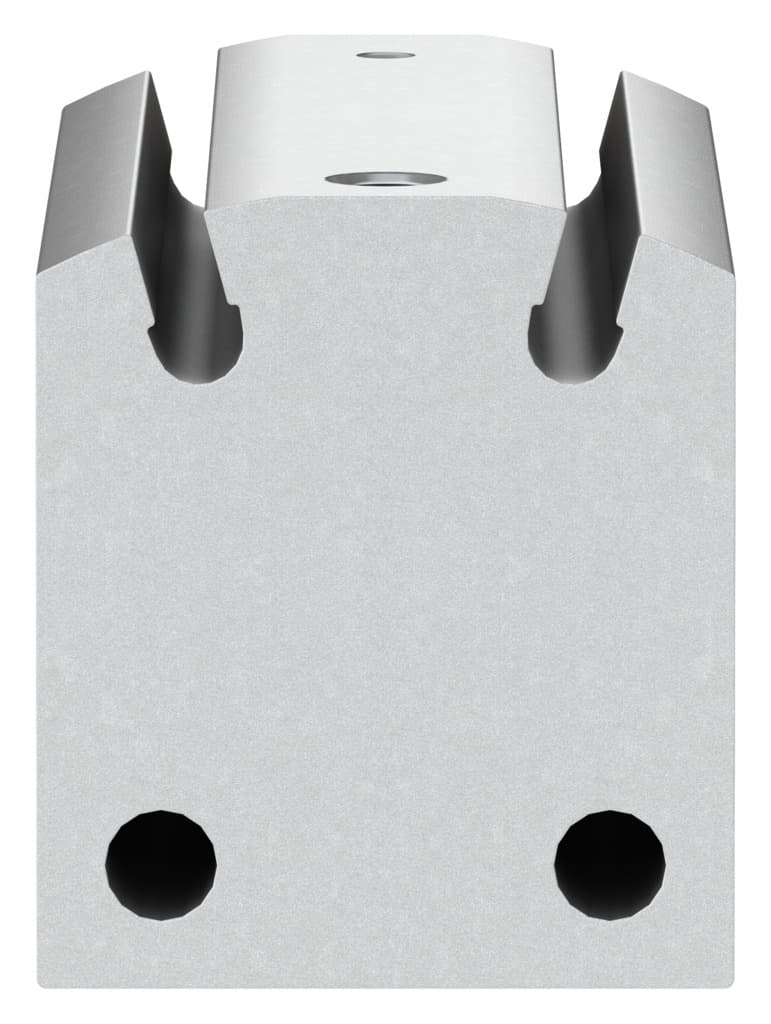

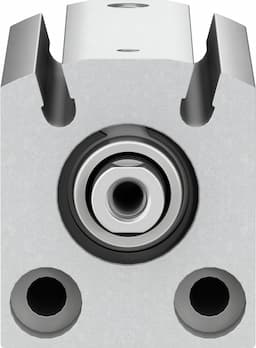

aevc-16-25-i-p-a
Product ID:6236
Updated: 2026/7/7
Key Features
- 1Achieve precise motion with a 25 mm stroke and 16 mm piston diameter.
- 2Operate reliably from -20°C to 80°C and 1.5 to 10 bar pressure.
- 3Ensure smooth deceleration using elastic cushioning rings at both ends.
- 4Benefit from precise control with 5 N spring force and 26 g moving mass.
- 5Use clean compressed air per ISO 8573-1:2010 for consistent performance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 25mm | Piston diameter | 16 mm |
| Spring resetting force with piston rod in retracted position | 5N | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Pushing Single-acting |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991729 | Operating pressure | 21.75psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, advancing | 105N |
| Moving mass | 26g | Product weight | 128g |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
| Piston rod material | High-alloy steel | Manufacturer ID | 188098 |
Specifications may be subject to change without notice
