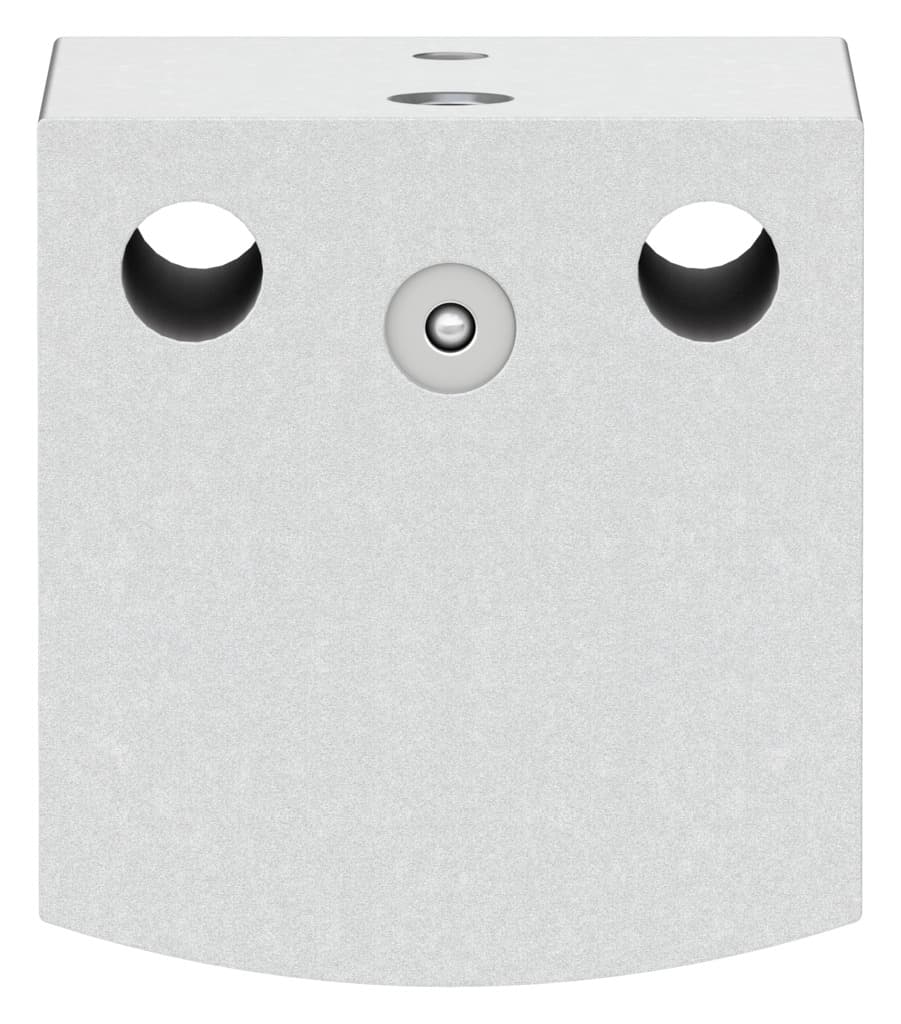

aevc-20-10-a-p
Product ID:6276
Updated: 2026/7/7
Key Features
- 1Achieve precise 10 mm stroke control with a 20 mm piston diameter.
- 2Withstand low corrosion stress using CRC 1 rated materials.
- 3Reduce impact and wear via elastic cushioning rings at both ends.
- 4Install flexibly using through-hole mounting or optional accessories.
- 5Ensure system compatibility by meeting ISO 8573-1:2010 standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 20 mm |
| Spring resetting force with piston rod in retracted position | 10N | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Pushing Single-acting |
| Structural design | Piston Piston rod | Position sensing | None |
| Symbol | 00991730 | Operating pressure | 21.75psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, advancing | 170N |
| Moving mass | 21g | Product weight | 87g |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
| Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
| Piston rod material | High-alloy steel | Manufacturer ID | 188138 |
Specifications may be subject to change without notice
