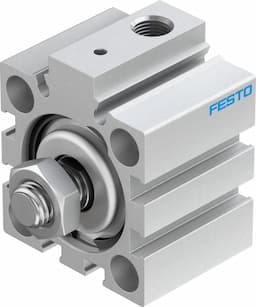

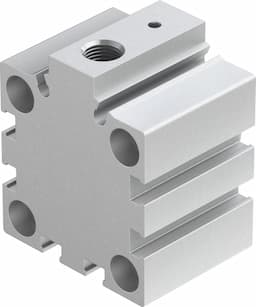

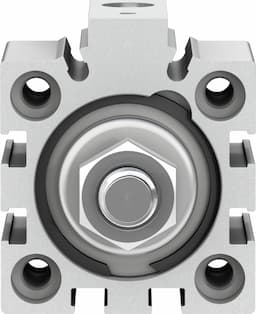

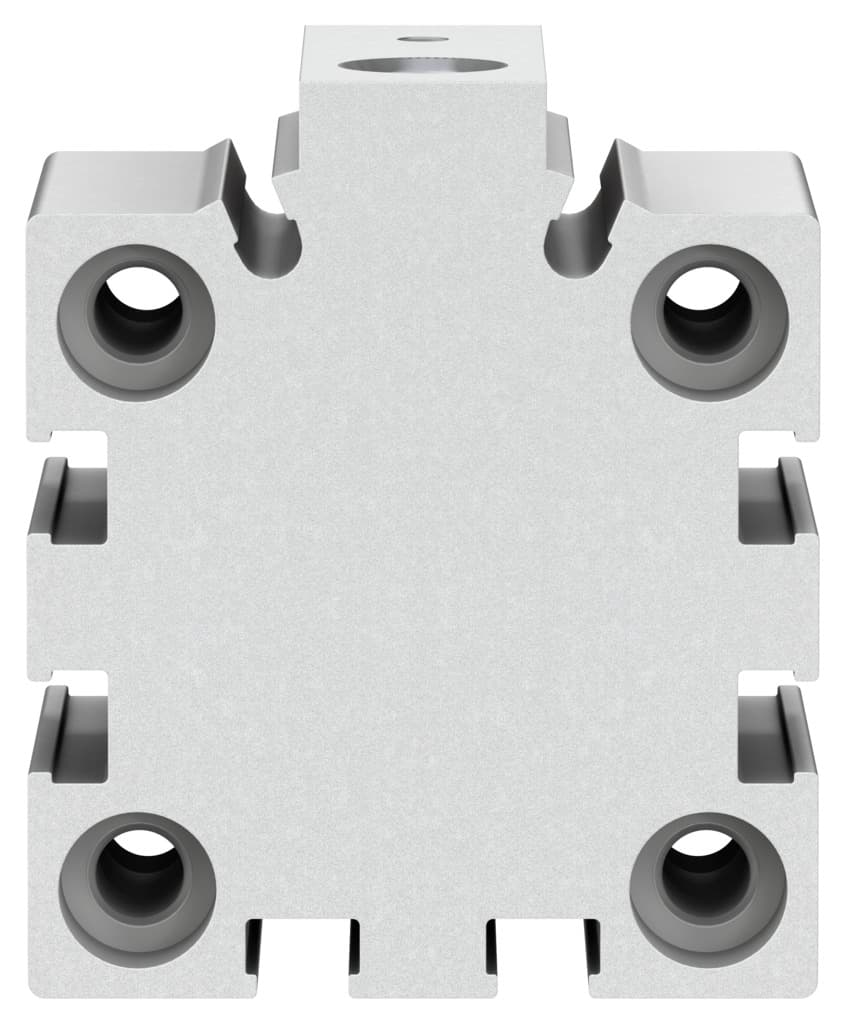

aevc-32-10-a-p
Product ID:6340
Updated: 2026/7/7
Key Features
- 1Meet ISO 6431 standards for high-precision performance.
- 2Utilize elastic cushioning rings for smooth operation.
- 3Mount in any position for flexible application.
- 4Resist corrosion with CRC 1 classification for durability.
- 5Operate with ISO 8573-1:2010 compliant compressed air.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 32 mm |
| Spring resetting force with piston rod in retracted position | 22N | Based on norm | ISO 6431 Hole pattern VDMA 24562 |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod |
| Position sensing | None | Symbol | 00991730 |
| Operating pressure | 14.5psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Theoretical force at 6 bar, advancing | 450N | Moving mass | 48g |
| Product weight | 169g | Type of mounting | Optionally: With through-hole With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy Anodized | Seals material | NBR TPE-U(PU) |
| Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
| Manufacturer ID | 188202 |
Specifications may be subject to change without notice
