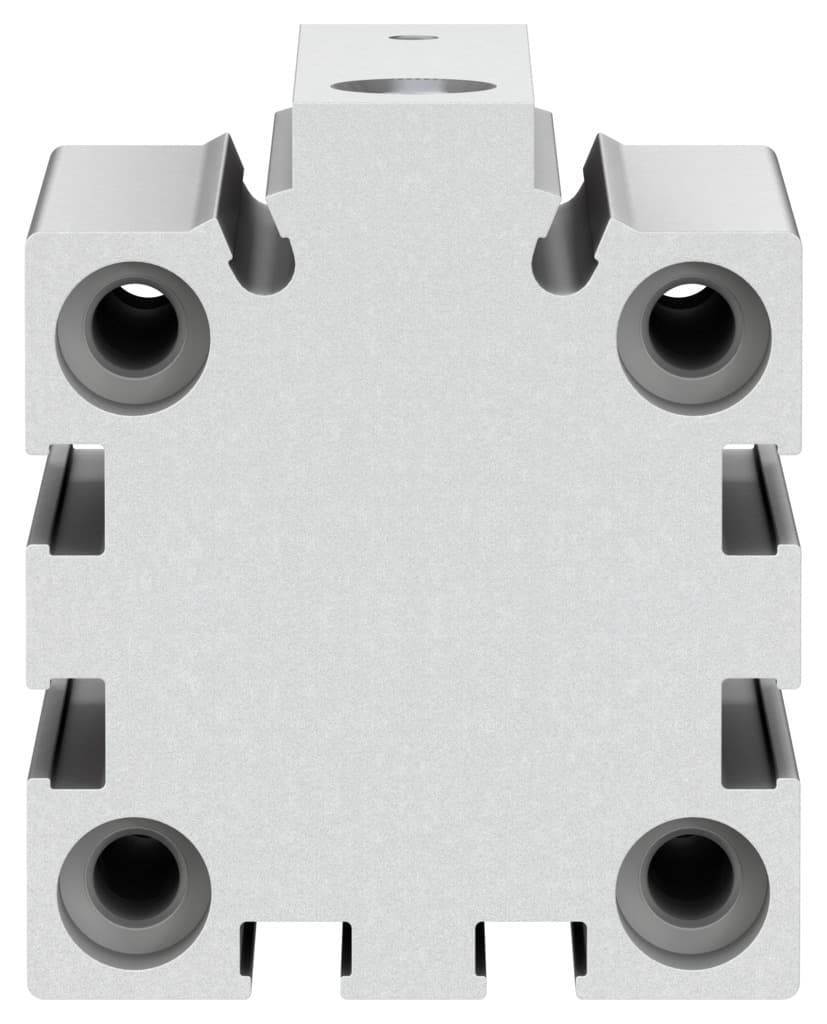

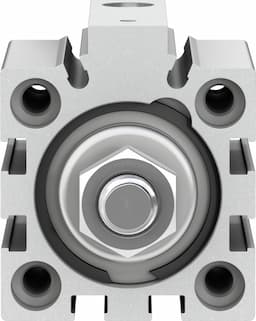

aevc-32-25-a-p
Product ID:6341
Updated: 2026/4/3
Key Features
- 1Ensure precise control with a 32mm piston diameter and 25mm stroke. 2、Reduce wear using elastic cushioning rings at both ends. 3、Mount flexibly via through-hole or with accessory kits. 4、Operate reliably from 1 to 10 bar and -20 to +80°C. 5、Resist corrosion with a low-stress CRC 1 rating for durability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 25mm | Piston diameter | 32 mm |
| Spring resetting force with piston rod in retracted position | 22N | Based on norm | ISO 6431 Hole pattern VDMA 24562 |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod |
| Position sensing | None | Symbol | 00991730 |
| Operating pressure | 14.5psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Theoretical force at 6 bar, advancing | 450N | Moving mass | 62g |
| Product weight | 224g | Type of mounting | Optionally: With through-hole With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy Anodized | Seals material | NBR TPE-U(PU) |
| Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
| Manufacturer ID | 188203 |
Specifications may be subject to change without notice
