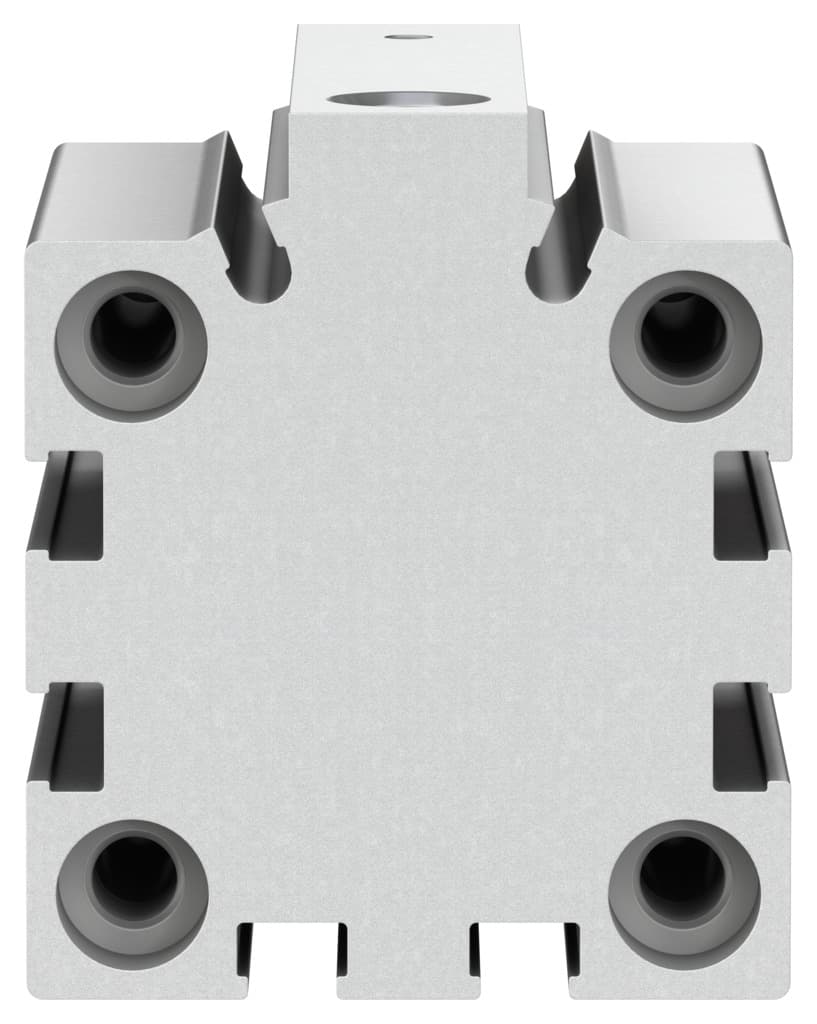

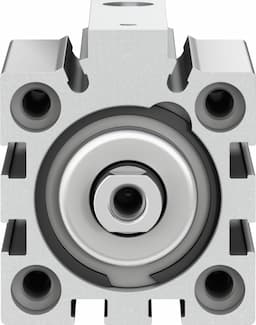

aevc-32-25-i-p-a
Product ID:6332
Updated: 2026/4/3
Key Features
- 1Achieve high performance in demanding applications with robust construction. 2、Ensure smooth operation via flexible cushioning rings at both ends. 3、Gain precise and reliable motion from precision engineering. 4、Enable flexible installation with versatile through-hole or accessory mounting. 5、Resist corrosion in various environments per class 1 standard.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 25mm | Piston diameter | 32 mm |
| Spring resetting force with piston rod in retracted position | 22N | Based on norm | ISO 6431 Hole pattern VDMA 24562 |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod |
| Position sensing | For proximity sensor | Symbol | 00991729 |
| Operating pressure | 14.5psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Theoretical force at 6 bar, advancing | 450N | Moving mass | 67g |
| Product weight | 244g | Type of mounting | Optionally: With through-hole With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
| Manufacturer ID | 188194 |
Specifications may be subject to change without notice
