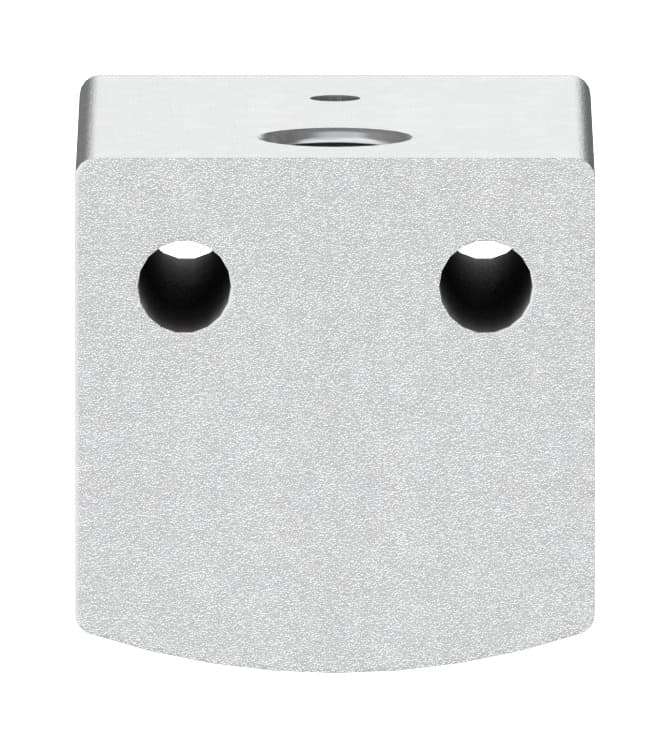

aevc-4-2,5-p
Product ID:6190
Updated: 2026/4/3
Key Features
- 1Utilize the compact AEVC-4-2,5-P for precise single-acting movements. 2、Reduce wear with flexible cushioning rings at both ends. 3、Ensure reliable return with a consistent 1 N spring force. 4、Mount easily using the versatile piston rod without thread. 5、Apply this high-precision cylinder across automation and manufacturing.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 2.5mm | Piston diameter | 4 mm |
| Spring resetting force with piston rod in retracted position | 1N | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Pushing Single-acting |
| Structural design | Piston Piston rod | Position sensing | None |
| Symbol | 00991730 | Operating pressure | 36.25psi 116psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, advancing | 4.9N |
| Moving mass | 0.15g | Product weight | 3g |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M3 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
| Seals material | HNBR NBR | Housing material | Wrought aluminum alloy Anodized |
| Piston rod material | Wrought aluminum alloy Anodized | Manufacturer ID | 188050 |
Specifications may be subject to change without notice
