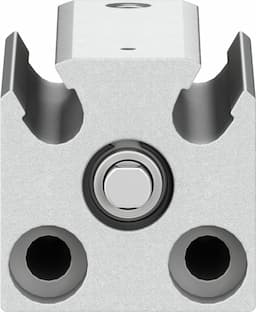

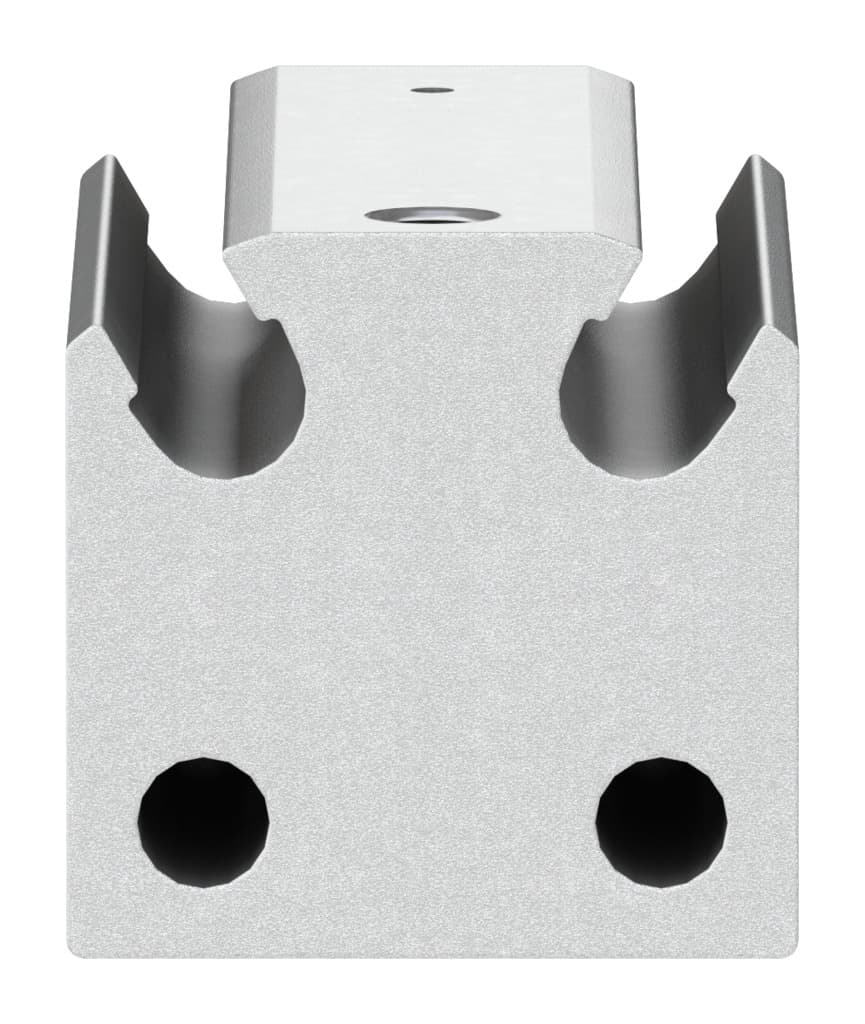

aevc-6-10-p-a
Product ID:6197
Updated: 2026/4/3
Key Features
- 1Utilize the AEVC-6-10-P-A for precise proximity sensing with its 10 mm stroke. 2、Ensure smooth operation and reduced wear via elastic cushioning rings. 3、Operate reliably across a wide -20°C to 80°C temperature range. 4、Rely on a consistent 3 N spring return force for retraction. 5、Support lubricated operation with ISO 8573-1:2010 compressed air.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 6 mm |
| Spring resetting force with piston rod in retracted position | 3N | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Pushing Single-acting |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991729 | Operating pressure | 36.25psi 116psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, advancing | 11N |
| Moving mass | 1.8g | Product weight | 17g |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M3 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
| Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
| Piston rod material | High-alloy steel | Manufacturer ID | 188057 |
Specifications may be subject to change without notice
