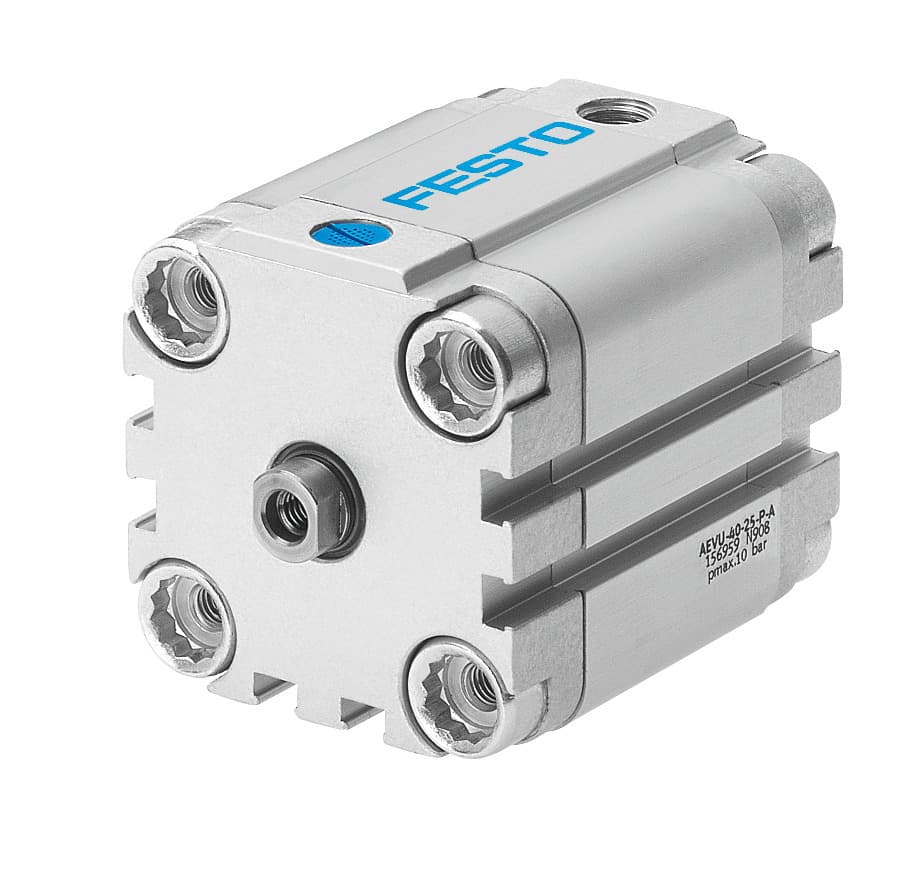

aevu-100- -p-a-s6
Product ID:3053
Updated: 2026/4/3
Key Features
- 1Achieve precise 1-25 mm stroke control for accurate positioning. 2、Reduce wear with elastic cushioning rings at both ends. 3、Install flexibly using optional mounting positions. 4、Enable precise sensing via the magnetic piston. 5、Operate reliably with 0.06-1 MPa compressed air.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 25mm | Piston diameter | 100 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Pushing Single-acting | Piston rod end | Internal thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991729 | Variants | Heat-resistant seals max. 120°C |
| Operating pressure | 8.7psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 0°C 120°C |
| Impact energy in the end positions | 1J | Theoretical force at 6 bar, advancing | 4516N |
| Moving mass at 0?mm stroke | 614g | Additional moving mass per 10?mm stroke | 38g |
| Basic weight with 0?mm stroke | 2797g | Additional weight per 10?mm stroke | 177g |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | G1/4 |
| Flange screws material | Steel, galvanized | Cover material | Wrought aluminum alloy |
| Material of dynamic seals | FPM | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy | Manufacturer ID | 156259 |
Specifications may be subject to change without notice
