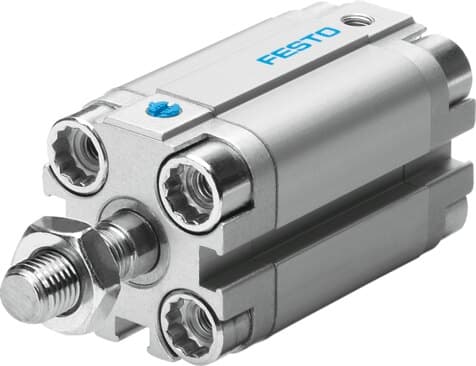

AEVU-12- -A-P-A
Product ID:511134
Updated: 2026/6/1
Key Features
- 1Operating mode: Pushing / single-acting
- 2Piston diameter: 12 mm
- 3Theoretical force at 6 bar, forward stroke: 59 N
- 4Stroke: 1 / 10 mm
- 5Cushioning: Elastic cushioning rings/pads at both ends
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Material of cylinder barrel | Wrought aluminium alloy | Material of piston rod | High-alloy stainless steel |
| Material of dynamic seals | NBR / TPE-U(PU) | Material of cover | Wrought aluminium alloy |
| Material of eye screw | High-alloy stainless steel | Pneumatic connection | M5 |
| Mounting type | Through-holes / with accessories | Additional weight for every 10 m stroke | 15 g |
| Basic weight for 0 mm stroke | 87 g | Additional moving mass for every 10 mm stroke | 2 g |
| Moving mass for 0 mm stroke | 8 g | Theoretical force at 6 bar, forward stroke | 59 N |
| Impact energy at end positions | 0.07 J | Ambient temperature | -20 / 80 °C |
| Paint-wetting impairment substance (PWIS) conformity | VDMA24364-B1/B2-L | Corrosion resistance class CRC | 2 - Moderate corrosion resistance |
| Note on operating and pilot medium | Operation with lubricated medium possible (subsequently must always be operated with lubricated medium) | Operating medium | Compressed air in accordance with ISO 8573-1:2010 [7:4:4] |
| Operating pressure | 21.75 / 145 psi | Variant | Single-ended piston rod |
| Symbol | 00991729 | Position detection | Via proximity switch |
| Design feature | Cylinder barrel / piston rod | Piston rod end | External thread |
| Operating mode | Pushing / single-acting | Mounting position | Any |
| Cushioning | Elastic cushioning rings/pads at both ends | Piston rod thread | M6 |
| Piston diameter | 12 mm | Stroke | 1 / 10 mm |
