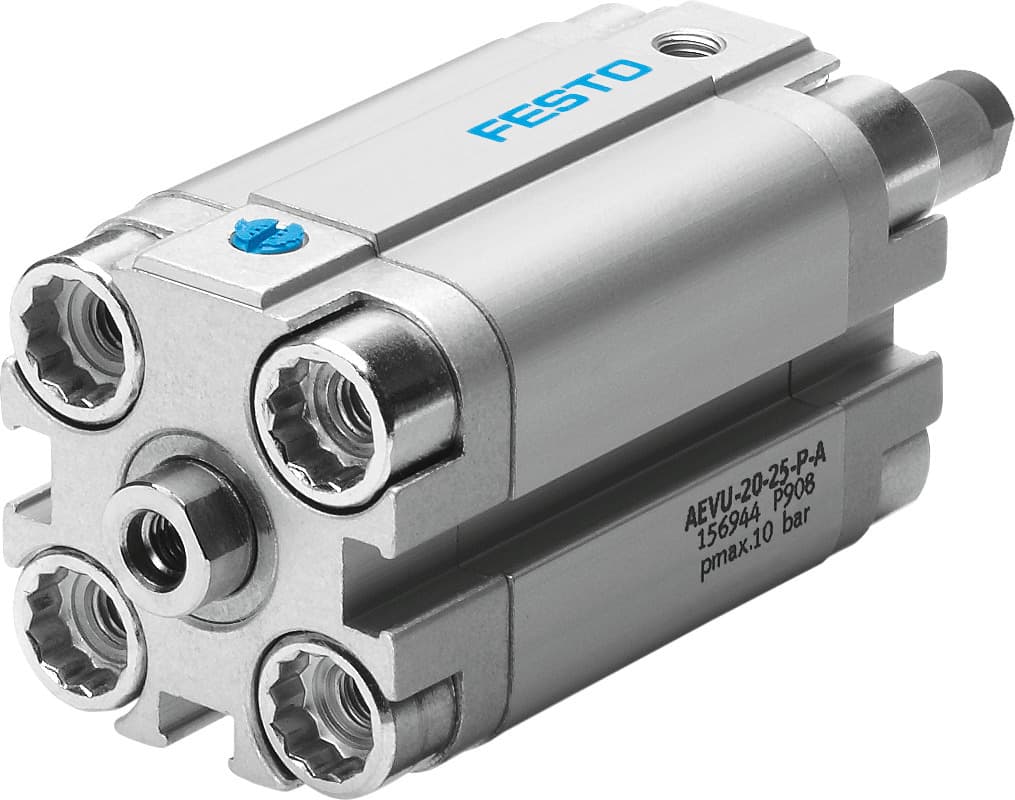

aevu-16- -p-a-s2
Product ID:3034
Updated: 2026/7/7
Key Features
- 1Achieve precise control and efficient operation for diverse industrial tasks.
- 2Reduce wear with elastic cushioning rings at both cylinder ends.
- 3Fit the compact AEVU-16- -P-A-S2 into tight spaces easily.
- 4Select optional mounting positions for flexible installation.
- 5Ensure accurate positioning via optional built-in proximity switches.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 25mm | Piston diameter | 16 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Single-acting | Piston rod end | Internal thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991202 | Variants | Through piston rod |
| Operating pressure | 18.85psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.1J | Theoretical force at 6 bar, advancing | 81N |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
| Flange screws material | High-alloy stainless steel | Cover material | Wrought aluminum alloy |
| Material of dynamic seals | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | Wrought aluminum alloy | Manufacturer ID | 156231 |
Specifications may be subject to change without notice
