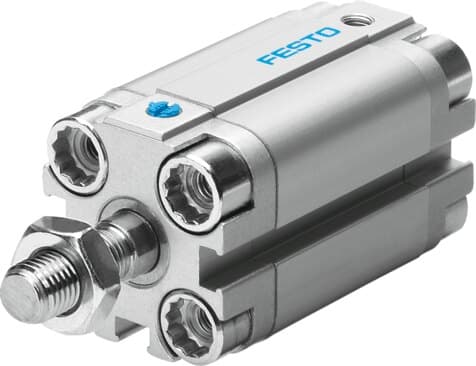

AEVU-20-5-A-P-A
Product ID:511029
Updated: 2026/6/1
Key Features
- 1Operating mode: Pushing / Single-acting
- 2Piston diameter: 20 mm
- 3Theoretical force at 6 bar, forward stroke: 171 N
- 4Stroke: 5 mm
- 5Cushioning: Elastic cushioning rings/pads at both ends
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cylinder barrel material | Wrought aluminium alloy | Piston rod material | High-alloy stainless steel |
| Dynamic seal material | NBR / TPE-U(PU) | Cover material | Wrought aluminium alloy |
| Eye bolt material | Galvanized steel | Pneumatic connection | M5 |
| Mounting type | With through-holes / With accessories | Additional weight per 10 mm stroke | 23 g |
| Basic weight for 0 mm stroke | 149 g | Additional moving mass per 10 mm stroke | 6 g |
| Moving mass for 0 mm stroke | 20 g | Theoretical force at 6 bar, forward stroke | 171 N |
| Impact energy at end positions | 0.14 J | Ambient temperature | -20 / 80 °C |
| Paint-wetting impairment substances (PWIS) conformity | VDMA24364-B1/B2-L | Corrosion resistance class CRC | 2 - Moderate corrosion resistance |
| Note on operating and pilot medium | Can be operated with lubricated medium (subsequently must always be operated with lubricated medium) | Operating medium | Compressed air conforming to ISO 8573-1:2010 [7:4:4] |
| Operating pressure | 14.5 / 145 psi | Variant | Single-ended piston rod |
| Symbol | 00991729 | Position detection | Via proximity switch |
| Design feature | Cylinder bore / Piston rod | Piston rod end | External thread |
| Operating mode | Pushing / Single-acting | Mounting position | Optional |
| Cushioning | Elastic cushioning rings/pads at both ends | Piston rod thread | M10x1.25 |
| Piston diameter | 20 mm | Stroke | 5 mm |
