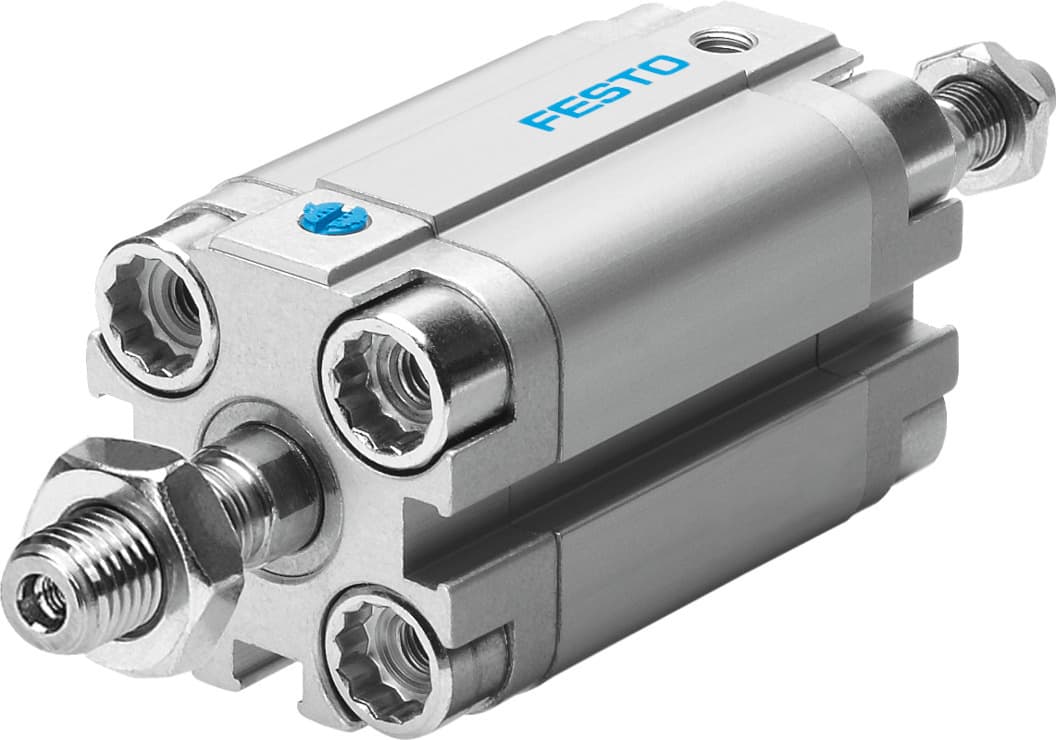

aevu-20- -a-p-a-s20
Product ID:3076
Updated: 2026/4/3
Key Features
- 1Save 50% installation space versus standard ISO cylinders. 2、Ensure smooth operation with elastic cushioning at both ends. 3、Achieve precise positioning via a built-in magnet for sensing. 4、Select from variants with internal or external threaded rods. 5、Operate reliably from -20°C to +80°C with oil lubrication.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 25mm | Piston diameter | 20 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Single-acting | Piston rod end | External thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991203 | Variants | Through, hollow piston rod |
| Operating pressure | 17.4psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.014J | Theoretical force at 6 bar, advancing | 123N |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
| Flange screws material | Steel, galvanized | Cover material | Wrought aluminum alloy |
| Material of dynamic seals | NBR TPE-U(PU) | Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | Wrought aluminum alloy | Manufacturer ID | 156282 |
Specifications may be subject to change without notice
