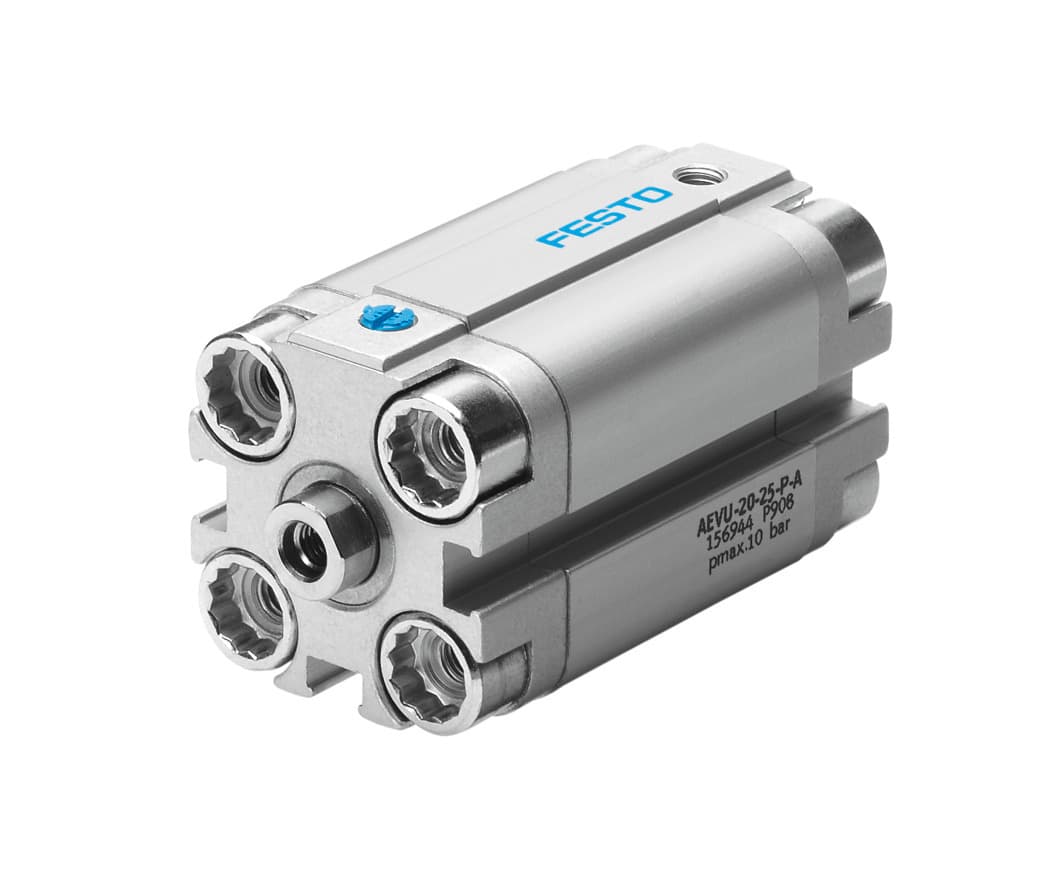

aevu-20- -p-a-s6
Product ID:3046
Updated: 2026/7/7
Key Features
- 1Save 50% installation space versus ISO cylinders.
- 2Ensure smooth operation with elastic cushioning at both ends.
- 3Achieve precise control via a built-in magnet for position sensing.
- 4Withstand diverse conditions from -20°C to +80°C.
- 5Customize with piston rod thread variants.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 25mm | Piston diameter | 20 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Pushing Single-acting | Piston rod end | Internal thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991729 | Variants | Heat-resistant seals max. 120°C |
| Operating pressure | 14.5psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | 0°C 120°C |
| Impact energy in the end positions | 0.14J | Theoretical force at 6 bar, advancing | 180N |
| Moving mass at 0?mm stroke | 20g | Additional moving mass per 10?mm stroke | 6g |
| Basic weight with 0?mm stroke | 149g | Additional weight per 10?mm stroke | 23g |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
| Flange screws material | Steel, galvanized | Cover material | Wrought aluminum alloy |
| Material of dynamic seals | FPM | Piston rod material | High-alloy stainless steel |
| Material of cylinder barrel | Wrought aluminum alloy | Manufacturer ID | 156252 |
Specifications may be subject to change without notice
